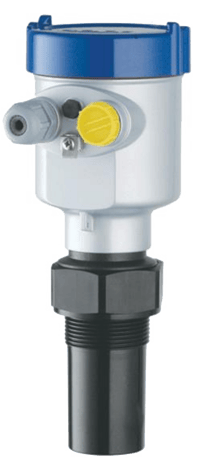

Images are representations only.

UC551

Series: UC551 Ultrasonic Level Meter Brand: BM Technologies
Price
$2,142.00 CAD
Stock
25+ In Stock
Request Information

  • Material / Operating Temperature / Protection - PBT-GF /-40° to 70° C / IP66
  • Electronics - 4-20 mA (2-Wires)
  • Material of Housing / Protection - Aluminum / IP67
  • Wiring - M20 x 1.5
  • Display / Programming - YES

Specifications

Brand

Accuracy

  • 0.2 to 0.5 % Calibrated Range

Applications

  • Level Measurement for Highly Corrosive Media

Approvals & Certifications

  • ISO 9001: 2008
  • TÜV

BSP Connection

  • G 1-1/2” A

Cable Entry

  • 1 x PG 13.5

Communication

  • Output Signal: HART

Consumption

  • Absorption: 2.1 W for Supply of 4-Wires Version
  • Absorption: Max.
  • Absortion: Max.

Current

  • Fixed Signal for Anomaly: 20.5 mA
  • Fixed Signal for Anomaly: 22 mA
  • Fixed Signal for Anomaly: 3.8 mA

Display

  • Resolution Display: 0.039” (1 mm)

Electrical Connectors

  • 1/2” NPT
  • M20 x 1.5

Enclosure, Body Material

  • 316L Stainless Steel
  • Aluminum
  • Plastic PBT-GF

Environmental Protection

  • IP66
  • IP67

Frequency

  • 46,000 Hz
  • Resistance to Vibration: 10 to 150 Hz
  • Ripple Allowed: < 100 Hz for Supply of 2-Wires Version
  • Ripple Allowed: 100 to 100,000 Hz for Supply 2-Wires Version

Input

  • Input Voltage: 15-36 Vdc for Supply of 2-Wires Version
  • Input Voltage: 24 Vdc ± 10 % for Supply of 4-Wires Version

Measuring Range

  • 0.8 to 16.4 feet (0.25 to 5 metres)

Measuring Time

  • Interval of Measure: Approximately 2 seconds

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Output

  • Output Signal: 4-20 mA (2 or 4-Wires)

Pressure Range

  • bar: -0.2 to 1
  • kPa: -20 to 100
  • psi: -2.90 to 14.5

Resistance

  • Resistance 4-Wires Version: Max.

Resolution

  • 1.6 µA

Sensor, Probe Material

  • Sensor: PBT-GF
  • Sensor: PTFE
  • Sensor: PVDF

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Update Time

  • Interval of Updating: Approximately 3 seconds
