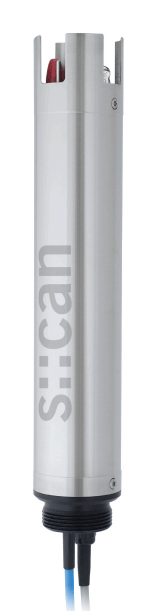

AMMO:LYSER ECO

Series: Ammo::lyser Eco Ion Selective Probe for Waste Water Brand: BM Technologies
Price
$2,069.00 CAD
Stock
11 In Stock
Request Information

  • Water - WWTP Aeration
  • Waste Water - WWTP Aeration - Ammolyser II eco (NH4-N, Temp)

Specifications

Brand

Accuracy

  • ± 0.5 mg/L whichever is greater
  • ± 3 % for NH₄-N

Approvals & Certifications

  • EMC: EN 50081-1, EN 50082-1, EN 60555-2, EN 60555-3, EN 61010-1

Cable Length

  • 24.61 feet (7.5 metres) Fixed Cable

Communication

  • RS-485

Consumption

  • Power Consumption: 0.72 W

Delay Time

  • 10 to 30 seconds

Electrical Connectors

  • Plug

Enclosure, Body Material

  • 316Ti Stainless Steel
  • POM - C

Environmental Protection

  • IP67
  • IP68

Flow Rate

  • Flow Velocity: 0.01 to 3 m/sec

Interval Time

  • Cleaning Interval: 30 to 120 minutes

Measuring Range

  • 1 to 1,000 mg/L for NH₄-N

Media

  • Air

Operating Pressure

  • psi: 0 to 58 (kPa: 0 to 400, bar: 0 to 4)

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Power Supply

  • 10-30 Vdc

Pressure Range

  • psi: 29.01 to 58.02 (kPa: 200 to 400, bar: 2 to 4)

Principle of Operation

  • Ion Selective Electrode

Process Connection Material

  • Bayonet

Resolution

  • 0.02 to 1,000 mg/L for NH₄-N
  • 0.1° C (0.18° F)

Response Time

  • 60 seconds

Storage Temperature

  • 0° to 60° C (32° to 140° F) for Sensor
  • -5° to 30° C (23° to 86° F) for Electrode
