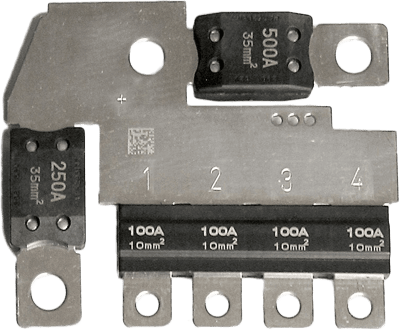

Images are representations only.
Masterfuse Series - High Current Fuse
Brand: Littelfuse, IncThe MASTERFUSE product is a configurable fuse solution combining several different fuse types (i.e. MEGA and MIDI) and ratings in one compact package.
This fuse package allows the user to replace multiple discrete fuses in a power distribution box with a single component, thus eliminating additional bolts, bus bars, and interconnects that are currently used.
By reducing the number of connections required, overall system reliability is increased while cost is decreased.
Features- Increased Reliability: due to reduced number of terminal interfaces
- System Cost Savings: Material savings due to reduced number of components required. Assembly cost savings due to reduced number of operations required for installation
- Fuse Array Customization: Ability to mix different fuse types (i.e. MEGA, MIDI, etc.) in one compact package
- Termination Options: Ability to mate to female terminals to enable “bolt-less” design
- Marking: Custom marking options available
Specifications
Brand
Voltage Rating
- 32 Vdc
Current Rating
- 30-250 A Full Range
- 300-600 A Short Circuit
Operating Temperature
- -40° to 125° C
Housing Material
- PA66-GF13HS
Terminal Material
- Copper (Silver or Tin Plating Options Available)
Mating Terminal
- M10, M8, M6, M5 Bolt-down Connections or Female Terminals
