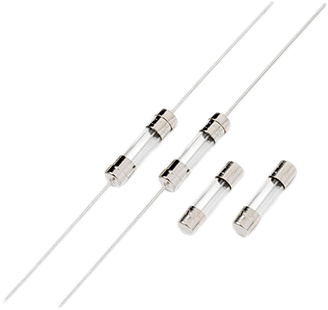

201P Series - Miniature 5 x 20 mm Medium-Acting Glass Body Fuse
Brand: Littelfuse, Inc5 × 20 mm Medium–Acting, Time-lag, Glass Body Cartridge Fuse.
Features- Visual fault indication
- Direct solderable or plug-in versions
- Worldwide availability
- RoHS compliant and Lead-free
Specifications
Brand
Certifications & Approvals
- RoHS
- cURus
Opening Time
- 2 s to 1 hr
Ampere Rating
- 0.05-1.25 A
Voltage Rating
- 250 V
Interrupting Rating
- 80 A @ 250 Vac
Operating Temperature
- -25° to 70° C
Body Material
- Glass
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
- As Supplementary Protection in Appliance
- As Individual Protection for Components or Internal Circuits in Utilization Equipment
