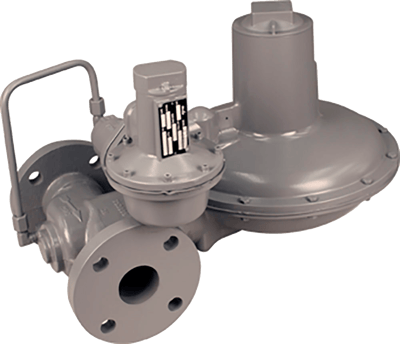

CL38 Commercial Pressure Regulator
Brand: ItronThe CL38 is a constant pressure loaded regulator for use where closer PSIG-to-PSIG regulation is desired than can be obtained from conventional spring-loaded regulators.
Since this regulator requires an inlet pressure supply of only 1/2 PSIG above outlet pressure, this unit can be used where demand type loading will not meet the low pressure differential.
Features- Constant loaded pilot design (“fixed-factor” pressure control)
- Interchangeable brass orifice
- Internal lower diaphragm chamber pressure flow control
- 133 in² of diaphragm area
- Spring-loaded pilot internal relief valve assembly
- Field interchangeable pilot adjustment spring
- Controlled internal bleed hole eliminates pulsation
- Wide range of valve body sizes including NPT and Flange connections
- 16 different available assembly positions
- Capacities from 1,500 CFH to 20,000 CFH available
Benefits
- Economical
- Light weight
- Accurate pressure control for “fixedfactor” measurement applications
- No special start-up procedures required
- Internal Monitor version eliminates the need for external relief valves or separate monitoring devices
- No special tools required for outlet pressure adjustment
- No minimum differential pressure requirement
Specifications
Brand
Valve Body Type
- NPT
- Flanged
Orifice Size
- 1-3/8”
- 1”
- 3/4”
- 5/8”
- 1/2”
- 3/8”
- 1-1/4”
Outlet Pressure Range
- 5” w.c. to 30 psig
Operating Temperature
- -20° to 150° F
Pilot Vent Size
- 3/4” NPT
Body Material
- Cast Iron
Orifice
- Brass (ASTM B-16, Alloy 360)
Valve Seat
- Buna-N
Valve Stem
- Plated Steel (AISI 1215)
Diaphragm Material
- Buna-N and Nylon Reinforcing Fabric
Appropriate for commercial and industrial applications where very accurate pressure control is required such as “fi xed-factor” metering applications or large boiler and furnace applications.
