Images are representations only.

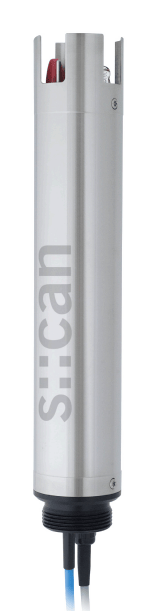

Ammo::lyser Eco Ion Selective Probe for Drinking Water

Part Number: AMMO::LYSER ECO Brand: BM Technologies
Price
$1,039.00 CAD
Stock
50+ In Stock
Request Information

Ion selective probe for drinking water.
Features
  • S::can plug & measure

  • Measuring principle: ISE (ions elective electrodes) - without potassium compensation

  • Multiparameter probe

  • Long term stable, factory pre-calibrated

  • Automatic cleaning with compressed air

  • Unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance

  • ISE refurbishment - the easy way to minimize maintenance

  • Easy & quick mounting and measurement directly in the media (InSitu) or in a flow cell (monitoring station)

  • Operation via s::can terminals & s::can software

  • Automatic temperature compensation and pH compensation possible

  • Ideal for surface water, ground water, drinking water and waste water

  • Minimal maintenance

  • Life time of ISE: typically 6 month (for applications 1mg/l NH4-N)

  • Pug connection or fixed cable

    • Specifications

    Brand

    Accuracy

    • ± 0.5 mg/L whichever is greater
    • ± 3 % for NH₄-N

    Approvals & Certifications

    • EMC: EN 50081-1, EN 50082-1, EN 60555-2, EN 60555-3, EN 61010-1

    Cable Length

    • 24.61 feet (7.5 metres) Fixed Cable

    Communication

    • RS-485

    Consumption

    • Power Consumption: 0.72 W

    Delay Time

    • 10 to 30 seconds

    Electrical Connectors

    • Plug

    Enclosure, Body Material

    • 316Ti Stainless Steel
    • POM - C

    Environmental Protection

    • IP67
    • IP68

    Flow Rate

    • Flow Velocity: 0.01 to 3 m/sec

    Interval Time

    • Cleaning Interval: 30 to 120 minutes

    Measuring Range

    • 1 to 1,000 mg/L for NH₄-N

    Media

    • Air

    Operating Pressure

    • psi: 0 to 58 (kPa: 0 to 400, bar: 0 to 4)

    Operating Temperature

    • 0° to 60° C (32° to 140° F)

    Power Supply

    • 10-30 Vdc

    Pressure Range

    • psi: 29.01 to 58.02 (kPa: 200 to 400, bar: 2 to 4)

    Principle of Operation

    • Ion Selective Electrode

    Process Connection Material

    • Bayonet

    Resolution

    • 0.02 to 1,000 mg/L for NH₄-N
    • 0.1° C (0.18° F)

    Response Time

    • 60 seconds

    Storage Temperature

    • 0° to 60° C (32° to 140° F) for Sensor
    • -5° to 30° C (23° to 86° F) for Electrode

    Documentation

    Data Sheets

    show more
