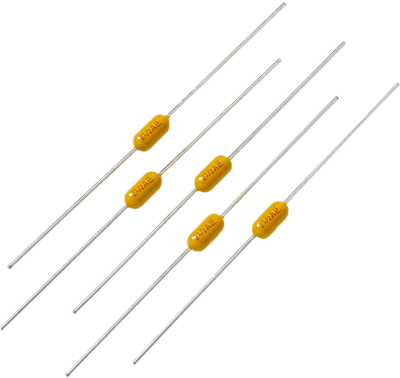

473 Series - PICO® II Slo-Blo Subminiature Axial Leaded Fuse
Brand: Littelfuse, IncThe PICO® II Slo-Blo® Fuse combines time-delay performance characteristics with the proven reliability of a PICO® Fuse.
Features- Enhanced inrush withstand
- Small size
- Wide range of current ratings (375mA - 7A)
- RoHS compliant
- Wide operating temperature range
- Low temperature de-rating
Specifications
Brand
Materials
- Encapsulated, Epoxy-Coated Body
- Solder Coated Copper Wire Leads
- RoHS Compliant Product: Pure Tin-Coated Copper Wire Leads
Solderability
- MIL-STD-202, Method 208
Lead Pull Force
- MIL-STD-202, Method 211, Test Condition A (will withstand a 7 lb axial pull test)
Operating Temperature
- -60° to +125° C (Consider re-rating)
Shock
- MIL-STD-202, Method 213, Test Condition I (100G’s peak for ms)
Vibration
- MIL-STD-202, Method 201 (10-55 Hz)
- MIL-STD-202, Method 204, Test Condition C (55-2000 Hz at 10 G’s Peak)
Salt Spray
- MIL-STD-202, Method 101, Test Condition B
Insulation Resistance (After Opening)
- MIL-STD-202, Method 302, (10,000 ohms minimum at 100 volts)
Resistance to Soldering Heat
- MIL-STD-202, Method 210, Test Condition C (20 sec at 260° C)
Thermal Shock
- MIL-STD-202, Method 107, Test Condition B (-65° to 125° C)
Moisture Resistance
- MIL-STD-202, Method 106 (90-98 % RH), Heat (65° C)
Approvals
- UL
- CSA
- PSE
- Flat–Panel Display TV
- LCD Monitor
- Lighting System
- Medical Equipment
- Industrial Equipment
