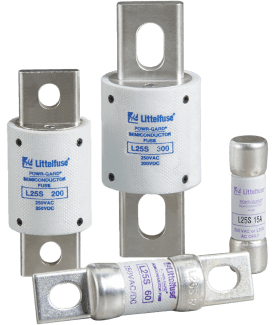

L25S Series - Traditional Semiconductor Fuse

Brand: Littelfuse, Inc

The L25S Series is a traditional North American Bolted style high-speed fuse for protection of power semiconductor devices that are rated up to 250 Vac and 200 Vdc.

Littelfuse POWR-SPEED® products offer optimized circuit protection at the extremely fast speed required to protect power semiconductor devices such as silicon controlled rectifiers (SCR’s), diodes, thyristors, triacs, transistors, and similar solid-state devices.

These devices are used in power equipment including variable speed drives, power rectifiers, UPS systems, dc power supplies, and in a wide range of electronic equipment.

May be used wherever extremely fast-acting, current-limiting fuses are used with no time delay required.
Features
  • Compliance with US and Canadian requirements
  • Traditional North American Bolted Style dimensions
  • Class aR performance
  • Direct bus-bar mount or stud mount design
  • RoHS compliant applications

Specifications

Certifications & Approvals

  • cURus
  • CE
  • RoHS
  • CSA

Voltage Rating

  • AC: 250 V
  • DC: 200-250 V

Ampere Range

  • 1-800 A

Interrupting Rating

  • AC: 200 kA
  • DC: 20 kA Self Certified

Time Constant

  • 10 ms

Body Material

  • Melamine

Cap Material

  • Copper Alloy (Silver-Plated)

Operating Temperature

  • -55° to 125° C

Storage Temperature

  • Up to 35° C with Relative Humidity < 65 %

  • Power Converters (Inverters, Rectifiers, UPS)
  • Power Supplies
  • Industrial Heaters
  • Variable Speed Drives
  • Battery Chargers
  • Soft Starters
