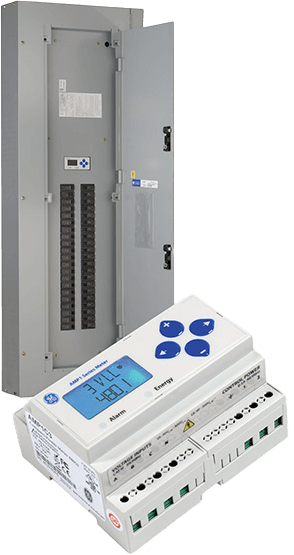

A-Series* II AMP1 Integrated Power & Energy Meter
Brand: General ElectricLet our integrated A-Series II Panelboard solutions help you to identify potential measures that put you on the path to energy and cost savings.
Simply tie your Type AQ, AE, AS panelboard with our AMP1 Integrated Power & Energy Meter (into a building automation system) to know where your power goes and how much you’re using.
AMP1 Integrated Power & Energy Meter monitors key electrical parameters of the main power coming into the panelboard. The factory installed AMP1 meter is a completely integrated solution ideal for tenant billing and cost allocation.
Features- Solutions up to 800A
- Revenue Grade, ANSI 12.20 0.5% accuracy
- Monitors voltage, amperage, power, and energy
- Backlit LCD Display
- Data logging option to ensure data is still preserved locally
- Communicates via Modbus** RTU or BACnet – Versatile and widely used protocols.
- User-enabled password protection
- UL-67 approved
- 5-year warranty
Specifications
Brand
Maximum Voltage
- Type AQ - 240 V
- Type AE/AS - 480Y/277 V, 125/250 Vdc
Maximum Amperage
- 800 A
Series Rated
- Type AQ - 200 kAIC at 240 V
- Type AE/AS - 600 Amp Max.
