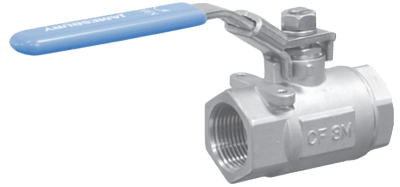

Jamesbury Series 100 Threaded End Ball Valve
Brand: ValmetJamesbury Series 100 general-purpose ball valves feature bubble tight shut-off for industrial and utility services.
Ideal for applications where non-relieving seats are acceptable.
Features- Two piece body construction of WCB carbon steel (Series 152M) or CF8M stainless steel material (Series 156M).
- Integral actuator mounting pad.
- Standard slide lock handle to meet OSHA 1910.147.
- Seats, stem and body seals are reinforced PTFE for high pressure rating and long cycle life.
- Internal entry stem provides positive stem retention.
Specifications
Brand
Ball Material
- 316 Stainless Steel
Bearing Material
- Stem: Reinforced PTFE
Cap Material
- Body: Carbon Steel
Capillary Material
- Body: 316 Stainless Steel
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
Handle Assembly Material
- Handle: 316 Stainless Steel
- Handle: Carbon Steel
Materials of Construction
- Shake Proof Washer: 316 Stainless Steel
- Shake Proof Washer: Carbon Steel
Mounting
- Actuator: Integral Mounting
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1/4” NPT Female
- 1-1/2” NPT Female
- 1-1/4” NPT Female
- 2” NPT Female
- 3/4” NPT Female
- 3/8” NPT Female
Nut & Bolt Material
- Stem Nut, Gland Nut: 316 Stainless Steel
- Stem Nut, Gland Nut: Carbon Steel
Pressure Rating
- psi: 2,000 (kPa: 13,800, bar: 138) - CWP Non-Shock
Seat / Seal Material
- Seat, Body Seal, Stem Seal: Reinforced PTFE
Stem Material
- 316 Stainless Steel
Temperature Range
- -29° to 38° C (-20° to 100° F) - Carbon Steel
- -51° to 38° C (-60° to 100° F) - Stainless Steel
Torque
- 4.07 to 36.61 (36.02 to 324 In/Lbs)
Valve Size
- 1/4” to 2” (8 to 50 mm)
Valve Type
- Manual
