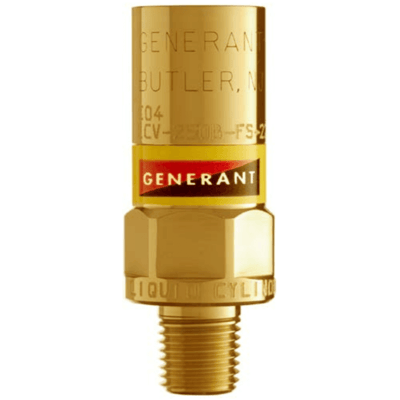

Series LCV Liquid Cylinder Valve

Brand: Generant Inc

The Series LCV Liquid Cylinder Pressure Control/Relief Valve is designed exclusively for use on DOT 4L Cryogenic Liquid Cylinders.

The LCV dramatically reduces the noise associated with traditional cylinder relief device discharge. Under normal operating conditions, the LCV optimizes cylinder performance by venting only what is required to maintain cylinder pressure in a tight band. I

n the event that circumstances demand, the LCV has adequate flow capacity to ensure safety, meeting all industry and regulatory requirements.
Features
  • Designed exclusively for use on DOT 4L Liquid Cylinders
  • Eliminates disruptive “pop” historically associated with traditional cylinder relief devices
  • Incorporates the customer proven “Dirt Guard” poppet
  • Accurately maintains and controls cylinder pressure minimizing product loss
  • Exceeds industry and regulatory flow capacity requirements
  • Complies with OSHA sound level regulations
  • Extensively field qualified
  • OEM approved and endorsed
  • Cleaned and Packaged for Oxygen Service

Specifications

Brand

Enclosure, Body Material

  • Brass

Flow Rate

  • 11.8 to 77.1 scfm at 110 % Set Pressure
  • 12.4 to 111.4 scfm at 120 % Set Pressure

Materials of Construction

  • Label: 0.004 Thick Mylar
  • Valve, Poppet, Spring Retainer, Screen: Brass, ASTM B16

Nominal Pressure

  • psig: 22 to 500 (kPa: 150 to 3,450, bar: 1.5 to 34.5)

NPT Connection

  • 1/4” NPT Male

Seat / Seal Material

  • Seal: Fluorosilicone [psig: 22 to 49 (kPa: 150 to 340, bar: 1.5 to 3.4)]
  • Seal: PCTFE [psi: 50 to 500 (kPa: 350 to 3,450, bar: 3.5 to 34.5)]

Spring Material

  • 302 Stainless Steel - ASTM A313
  • 630 Stainless Steel (17-4 PH) (ASTM A564)

Temperature Range

  • -196° to 176° C (-320° to 350° F)

Tolerance

  • Set Pressure psi: < 72.5, ± 2.175 psi as Per EN ISO 4126-1
  • Set Pressure psi: ≥ 72.5, ± 3 % as Per EN ISO 4126-1
