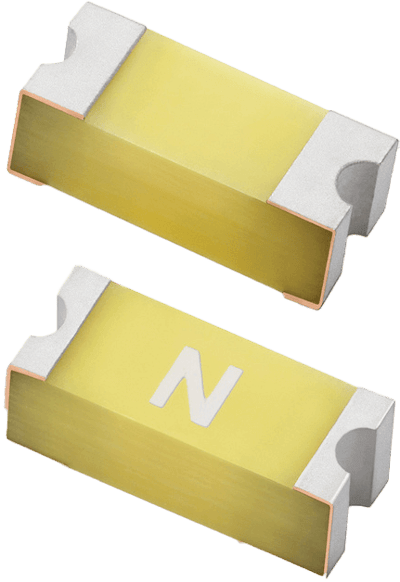

Images are representations only.
422 Series - 2410 Fast Acting Fuse
Brand: Littelfuse, IncThe 422 Series fuse is a 250 V rated Wire-in-Air Surface Mount Fuse, designed specifically to provide circuit protection to space constrained application.
The wire-in-air design of the 422 Series results in a relatively high I²t in a 2410 size.
Features- Operating Temperature from -55°C to 125°C
- 100% Lead-free, Halogen-free and RoHS compliant
- Fast acting
- Recognized to UL/CSA/NMX 248-1 and UL/CSA/NMX 248-14
- Conforms to EN/IEC 60127-1 and EN/IEC 60127-7
- Conforms to J60127-1 and J60127-7
Specifications
Brand
Materials
- Body: Epoxy Resin
- Terminations: Cu/Ni/Sn (100 % Pb-free)
Product Marking
- Body: Ampere Marking Code. See Part Marking in Datasheet
Insulation Resistance
- IEC 60127-4 (0.1 MΩ Min.)
High Temperature Storage
- MIL-STD-202, Method 108
Resistance to Soldering Heat
- MIL-STD-202, Method 210, Condition B
Thermal Shock Test
- JESD22 Method A104C
Biased Humidity
- MIL-STD-202, Method 103, 85° C/85 % Relative Humidity with 10 %operating power for 1000 hours
Operational Life
- MIL-STD-202, Method 108, Test Condition D
Resistance to Solvents
- MIL-STD-202, Method 215
Mechanical Shock
- MIL-STD-202, Method 213, Condition A
High Frequency Vibration
- MIL-STD-202, Method 204
Solderability
- JESD22-B102E Method 1
Moisture Resistance
- MIL-STD-202, Method 106
Moisture Sensitivity Level 1
- IPC/JEDEC J-STD-020D Level 1
Terminal Strength
- AEC Q200 -006
Board Bend/Flex
- AEC Q200-005
Approvals
- UL
- TÜV
- CE
- UKCA
- PSE
- Industrial Equipment
- Backlight Inverter
- Power Supply
- Telecom
- Server
- Networking
- Gaming System
- White Goods
