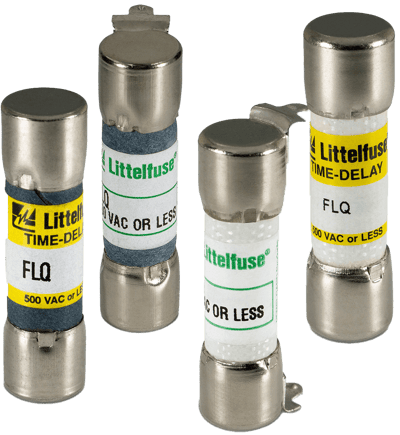

FLQ Series - Time-Delay Midget Fuse
Brand: Littelfuse, IncThe FLQ series 500 Vac time-delay fuses provide excellent supplemental protection of control power transformers, solenoids, and circuits with high inrush currents.
UL and CSA 500 volt ratings permit use on 480 volt circuits.
FLQ fuses also provide supplemental protection to small motors.
For motor branch-circuit protection, see Class CC fuses.
Features- Ideal for 480 Vac systems
- Time-Delay
Specifications
Brand
Certifications & Approvals
- CE
- UL
- CSA
- RoHS
Voltage Rating
- AC: 500 V or Less
- DC: 300 V
Ampere Range
- 1/10-30 A
Interrupting Rating
- DC: 10 kA Self Certified
- AC: 10 kA RMS Symmetrical
Body Material
- Melamine
- Extends 0.3” When Fuse Opens
- Paper
Cap Material
- Nickel-Plated Bronze
- Cap: Brass with Copper Blade (225-600 A)
Opening
- Slo-Blo/Time Lag (T)/Time Delay
Size
- Midget/5AG
- Control Power Transformers
- Solenoids
- Circuits With High Inrush Current
