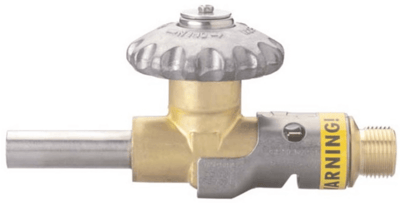

Series SDC Cylinder Connector
Brand: Generant IncThe Series SDC connection system is supplied for installation into the outlet ports of most gas use, vent and fill valves on a cryogenic liquid cylinder.
The system is a one piece assembly consisting of a CGA fitting/clutch mechanism permanently mounted in a stainless steel locking bracket.
Once installed, this system cannot be removed without rendering the CGA outlet connection unusable.
Features- Easily installs on most existing threaded cylinder valves using standard hex wrench
- NPT Male connection supplied with factory applied PTFE thread sealant tape
- Suitable for both industrial and medical applications
- CGA connections manufactured to industry standards
- Zero external leakage
- Cleaned and packaged for oxygen service
- Optional integral Anti-Back-Flow check valve
- OEM endorsed
Specifications
Brand
Applications
- Industrial Applications
- Medical Applications
Enclosure, Body Material
- Brass
Materials of Construction
- Locking Sleeve, Retaining Pins: 304 Stainless Steel, ASTM A240
- Spherical Locking Pawls: 440 Stainless Steel, ANSI 440C
- Stop Washer: 302 Stainless Steel - ASTM A313
- Warning Label: 4 Mil Laminated Vinyl
NPT Connection
- 3/8” NPT Male
Pressure Range
- Outlet - psi: 500 to 3,000 (kPa: 3,447 to 20,684, bar: 34.47 to 206.8)
Seat / Seal Material
- Seal: Buna-N
- Seal: Ethylene Propylene
- Seal: Fluorosilicone
- Seal: Neoprene
- Seal: Viton
Spring Material
- 302 Stainless Steel - ASTM A313
