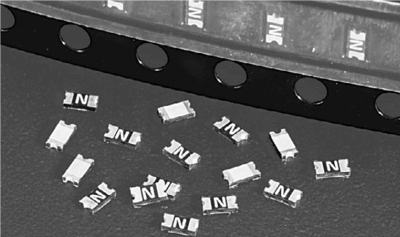

434 Series - OBSOLETE - SlimLine 0603 Very Fast-Acting Thin-Film Fuse
Brand: Littelfuse, IncThe 434 series fast-acting surface mount fuse series is an ultra small (0603 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
For RoHS compliant and lead-free design, please refer to the Littelfuse 467 series thin film fuse.
Features- The SlimLine 0603 fuse is an extremely small, low profile design (0603 chip size) utilizing thin-film technology to achieve precise control of electrical characteristics.
- The lower height profile produces a flat surface for improved performance in pick-and-place operations and an alternate solution for height critical applications.
Specifications
Brand
Materials
- Body: Epoxy Substrate
- Terminations: 100 % Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
Operating Temperature
- -55° to 90° C
- Consult temperature re-rating curve chart. For operation above 90° C contact Littelfuse
Humidity
- MIL-STD-202F, Method 103D, Condition D
Thermal Shock
- Withstands 5 cycles of -55° to 125° C
Vibration
- Per MIL-STD-202F
Insulation Resistance (After Opening)
- Greater than 10,000 ohms
Resistance to Soldering Heat
- Withstands 60 seconds above 200° C and up to 260° C, Max.
Approvals
- UL
- CSA
- Cell Phones
- Battery Packs
- Digital Cameras
- DVD Players
- Hard Disk Drives
