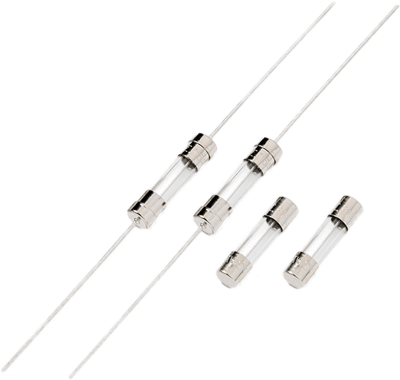

235 Series - 5 x 20 mm Fast-Acting Glass Body Cartridge Fuse
Brand: Littelfuse, Inc5 × 20 mm fast-acting glass body cartridge fuse designed to UL specification.
Features- Designed to UL/CSA/ANCE 248 Standard
- Available in cartridge and axial lead format
- RoHS compliant and lead-free
Specifications
Brand
Certifications & Approvals
- PSE
- KTL
- CE
- RoHS
- CSA
- UL
Ampere Range
- 0.1-7 A
Voltage Rating
- 250 V
- 125 V
Interrupting Rating
- 100 A / 35 A @ 250 Vac
- 10 kA @ 125 Vac
Body Material
- Glass
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
Operating Temperature
- -55° to +125° C
- As Supplementary protection in Aappliance
- As Individual Protection for Components or Internal Circuits
