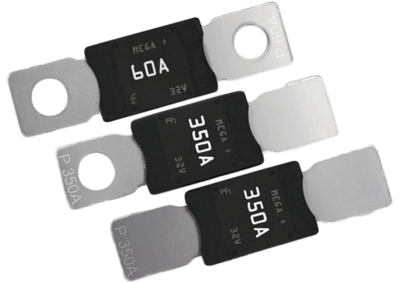

MEGA+ 32 V Series - MEGA+® Fuse Rated 32 V High Current Fuse

Brand: Littelfuse, Inc

The MEGA+® Fuse is designed for high current circuit protection up to 500 A with “Diffusion Pill Technology.” The MEGA+® Fuse also provides time delay characteristics.

Designed and patented by Littelfuse, the MEGA+® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
Features
  • Voltage Rating: 32 VDC
  • Interrupting Rating: 2,000 A @ 32 VDC
  • Current ratings 40 - 500 A

Specifications

Certifications & Approvals

  • RoHS

Voltage Rating

  • 32 Vdc

Current Rating

  • 40-500 A

Interrupting Rating

  • 2,000 A @ 32 Vdc

Operating Temperature

  • -40° to 125° C

Housing Material

  • PET-GF30FR

Terminal Material

  • Tin-Plated Copper Alloy

Mounting Torque

  • M6: 8 to 14 Nm
  • M8: 12 to 18 Nm

  • All Automotive Passenger Car
