217 Series - 5 x 20 mm Fast-Acting Glass Body Cartridge Fuse
Brand: Littelfuse, Inc5 x 20 mm fast-acting glass body cartridge fuse designed to IEC specification.
Features- Designed to International (IEC) Standards for use globally
- Meets the IEC 60127-2, sheet 2 specification for fast-acting fuses

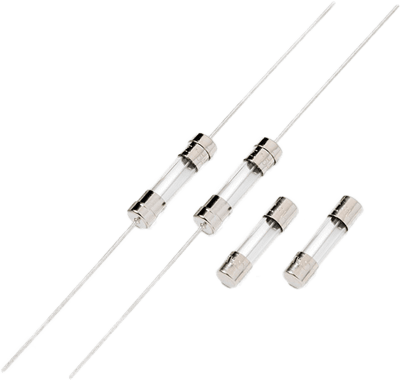

- Available in cartridge and axial lead form
- RoHS compliant and lead-free
Specifications
Brand
Certifications & Approvals
- RoHS
- BSI
- CE
- CSA
- KTL
- cURus
- DVE
- PSE
- CCC
Opening Time
- 0.003 s to 60 minutes
Ampere Rating
- 0..032-15 A
Voltage Rating
- 250 V
Interrupting Rating
- 35 A @ 250 Vac
- 150 A @ 250 Vac
- 40 A @ 250 Vac
- 70 A @ 60 Vdc or 75 Vdc
- 63 A @ 250 Vac
- 80 A @ 250 Vac
- 100 A @ 250 Vac
- 50 A @ 250 Vac
Operating Temperature
- -55° to 125° C
Body Material
- Glass
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
- As Supplementary Protection in Appliance
- As Individual Protection for Components or Internal Circuits in Utilization Equipment
