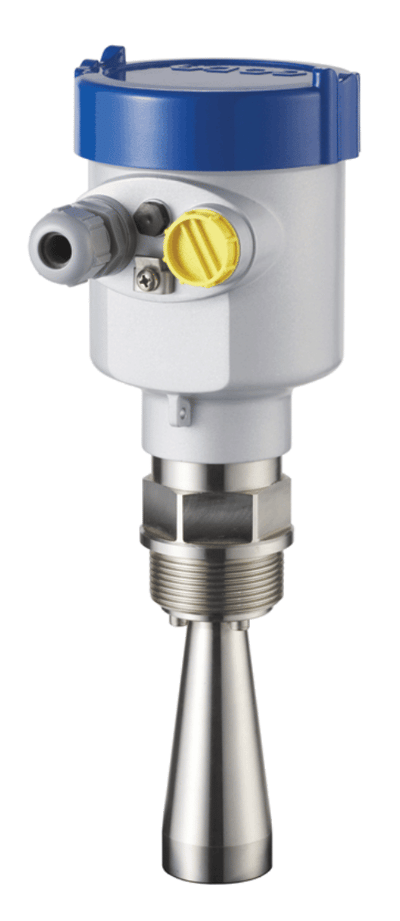

CW56 Radar Level Meter
Brand: BM TechnologiesCW56 for liquids Applications: Level measurement in liquids, suitable for highly erosive media.
For example: Oil Tanks, Anticoagulation, Anti-attachment, Anti-adhesion.
The Radar level meters of BM compact and Remote wave 26 Ghz series are excellent devices for no contact level measurement.
The microwave impulses, emitted by the radar’s antenna, travel at speed of light and a part of their energy, reflected by the surface of the medium to be measured, is received by the same antenna.
The period of time (flying time) between the emission and the arrival of the impulses, is proportional to the existing distance between the antenna and the surface of the medium to be measured.
Specifications
Brand
Accuracy
- ± 0.12” (± 3 mm)
Applications
- Storage/Process Vessels
Approvals & Certifications
- ISO 9001
- TÜV
BSP Connection
- G 1-1/2” A
Cable Entry
- 1 x PG 13.5
- 1/2” NPT
- M20 x 1.5
Communication
- Output Signal: HART
Consumption
- Absorption: 2 W for Supply 4-Wires Version
- Absorption: 22.5 mA - Max.
- Absorption: Max.
Current
- Fixed Signal for Anomaly: 20.5 mA
- Fixed Signal for Anomaly: 22 mA
- Fixed Signal for Anomaly: 3.8 mA
Display
- Resolution Display: 0.039” (1 mm)
Enclosure, Body Material
- 316L Stainless Steel
- Aluminum
- Plastic PBT-FR
Environmental Protection
- IP66
- IP67
Flange Material
- AISI 316L Stainless Steel
- Polypropylene
- PTFE
Flange Size - 2” (DN 50)
- 2” (DN 50) - Unrated
Flange Size - 3” (DN 80)
- 3” (DN 80) - Unrated
Flange Size - 4” (DN 100)
- 4” (DN 100) - Unrated
Flange Size - 5” (DN 125)
- 5” (DN 125) - Unrated
Frequency
- 26 GHz
- Beam Angle: 6 GHz
- Resistance to Vibration: 10 to 150 Hz
- Ripple Allowed: 100 to 100,000 Hz for Supply 2-Wires Version
Humidity
- < 95 % Relative Humidity
Input
- Input Voltage: 15-36 Vdc for Supply 2-Wires Version
- Input Voltage: 230 Vac ± 10 % for Supply 4-Wires Version
- Input Voltage: 24 Vdc ± 10 % for Supply 4-Wires Version
Materials of Construction
- Antenna: AISI 316L Stainless Steel
- Antenna: Polypropylene
- Antenna: PTFE
Measuring Range
- 0 to 98.43 feet (0 to 30 metres)
Measuring Time
- Interval of Measuring: Approximately 1 second
NPT Connection
- 1-1/2” NPT
Operating Pressure
- psi: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)
Operating Temperature
- -40° to 250° C (-40° to 482° F)
Output
- Output Signal: 4-20 mA (2 & 4-Wires)
Process Connection Material
- AISI 316L Stainless Steel
- Polypropylene
Resistance
- Maximum
Resolution
- 1.6 µA
Rotation
- Beam Angle: Ø 40 > 22°
- Beam Angle: Ø 48 > 18°
- Beam Angle: Ø 75 > 10°
- Beam Angle: Ø 95 > 8°
Seat / Seal Material
- Seal: Kalrez
- Seal: Viton
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Supply Voltage
- 198-242 Vac
- 22.8-26.4 Vdc
Update Time
- Integration Time: 0 to 20 seconds
- Interval of Updating: Approximately 1 second
