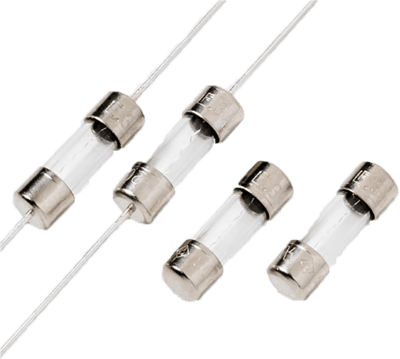

208 Series - 2AG Fast-Acting Lead-Free Glass Body Fuse
Brand: Littelfuse, IncLittelfuse 208 Series 350 V fast-acting fuses are available in cartridge form or with axial leads. This series provides the same performance characteristics as its 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
Features- In accordance with Underwriter's Laboratories™ Standard UL 248-14
- Fuses are board washable in most solvents
- Available in cartridge and axial lead form and with various forming dimensions
- RoHS compliant and lead free
Specifications
Brand
Certifications & Approvals
- RoHS
- cURus
- UL
- CE
- PSE
- Pb-Free
- REACH
- IPC-Material Declaration
Ampere Rating
- 0.375-10 A
Voltage Rating
- 350 Vac
Interrupting Rating
- 100 A @ 350 Vac
Operating Temperature
- -55° to 125° C
Body Material
- Glass
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
- Fluorescent Lighting
