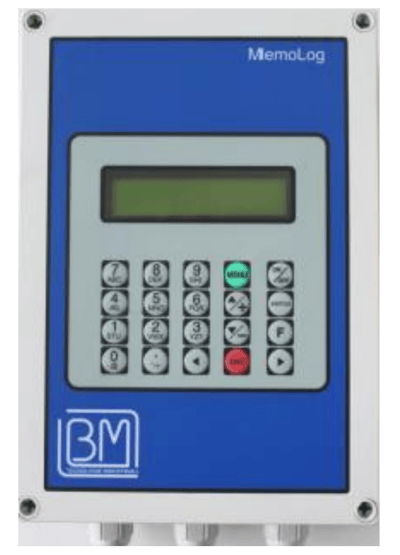

MemoLog Flow Meter
Brand: BM TechnologiesMeasurement, data acquisition and transmission system of flow and pressure for water networks with long battery life.
FeaturesSpecifications
Brand
Accuracy
- ± 1 % of Reading or ± 0.03 metres/seconds
- 0.35 % with Range psi: 0 to 8.702 (kPa: 0 to 60, bar: 0 to 0.6)
- 0.5 % with Range psi: 0 to 8.702 (kPa: 0 to 60, bar: 0 to 0.6)
Applications
- Butane
- Calibration of Numerical Models
- Check Fire System
- Gasoline
- Hydroelectric Power Stations
- Industrial Process Monitoring
- Oil
- Propane
- Pumping Station Control
- Virtual Water District, Water Losses in Aqueduct, Water Balance
- Wastewater Treatment Plants
Approvals & Certifications
- CE
- EMC: EN 61000-6-2
Battery Life
- Internal Battery: 40 Ah
Cable Length
- 0 to 660 feet (0 to 200 metres)
Communication
- GSM / GPRS 900 / 1,800 & 850 / 1,900 MHz
- Serial Port: RS-232
- USB
Consumption
- Maximum
- Minimum Low Power: 0.39 mA at 13.2 V
Diameter
- 0.59” to 236.2” (15 to 6,000 mm) for Internal
Enclosure Finish
- Black
Enclosure, Body Material
- Polyamide (PA 66)
Environmental Protection
- IP65
- IP68
Input
- Digital Input: 0-24 V
- Pressure Sensor Input: 0-10 V
Linearity
- 0.5%
Materials of Construction
- Pipe Material: Aluminum
- Pipe Material: Carbon Steel
- Pipe Material: Cast Iron
- Pipe Material: Copper
- Pipe Material: Ductile Iron
- Pipe Material: Fiber Glass
- Pipe Material: PVC
Measuring Range
- 0 to 20,000 ppm
Nominal Pressure
- psi: 0 to 1,450 (kPa: 0 to 10,000, bar: 0 to 100)
Pipe Size
- 0.5” to 4” (15 to 100 mm) for TS2-NG-05-KPT
- 11.8” to 236.2” (300 to 6,000 mm) for TL1-NG-05-KPT
- 2” to 40” (50 to 1,000 mm) for TM1-NG-05-KPT
Power Supply
- 11-24 Vac/dc
- 90-240 Vac (60/50 Hz)
Repeatability
- ± 0.2 %
- ± 0.5 %
Temperature Range
- -10° to 50° C (14° to 122° F)
- -20° to 90° C (-4° to 194° F)
- -25° to 125° C (-13° to 257° F)
- -30° to 90° C (-22° to 194° F)
