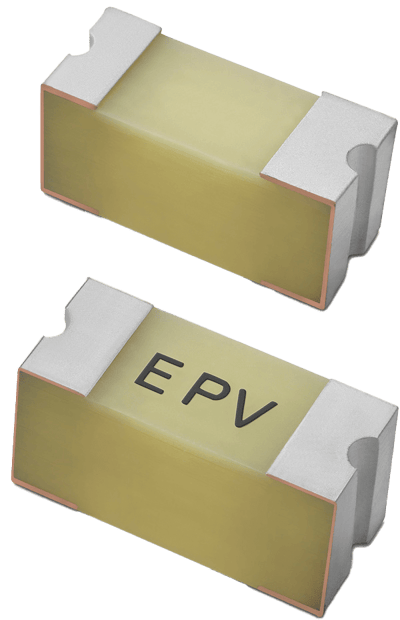

400PV Series - 2410 Photovoltaic Fuse
Brand: Littelfuse, IncLittelfuse 400PV Series is a 2410 size Surface Mount Fuse which offers relatively low resistance.
It provides UL 248-19 compliant overcurrent protection for photovoltaic (PV) cells. The 400PV series meets environment standards and is able to operate at high temperatures.
Features- Wide operating temperature range
- 100% lead-free, halogen-free, and RoHS compliant
- Reliable overcurrent performance in high temperature environments
- Recognized to UL/CSA 248-1 and UL/CSA 248-19
- Small and compact
- Surface mountable
- Compatible with common soldering assembly processes
Specifications
Brand
Materials
- Body: Epoxy resin (UL 94 V-0 Certified)
- Terminations: Cu/Ni/Sn (100 % Pb-free)
Moisture Sensitivity Level
- IPC/JEDEC J-STD-020C, Level 1
Solderability
- IPC/EIC/JEDEC J-STD-002B,Condition B
Humidity
- UL 248-19 Section 6.7.3
Resistance to Soldering Heat
- MIL-STD-202, Method 210F, Condition B
Thermally Induced Drift
- UL 248-19 Section 6.6.1
Moisture Resistance
- MIL-STD-202, Method 106G
Thermal Shock
- MIL-STD-202, Method 107G, Condition B-3
Mechanical Shock
- MIL-STD-202, Method 213B, Condition A
Vibration
- MIL-STD-202, Method 201A
Vibration, High Frequency
- MIL-STD-202, Method 204D, Condition D
Dissolution of Metallization
- IPC/EIC/JEDEC J-STD-002B, Condition D
Terminal Strength
- IEC 60127-4
Temperature Extremes
- UL 248-19 Section 6.6.2
Approvals
- UL
- Photovoltaic Shingles
- Photovoltaic Cells
