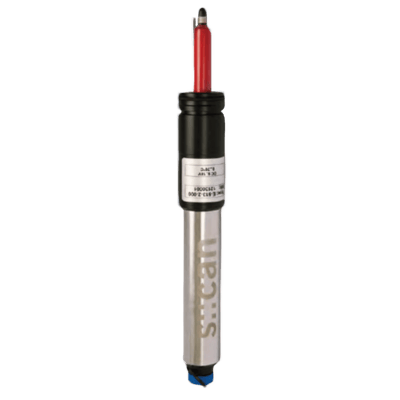

Redo::lyser Electrochemical Sensor

Part Number: REDO::LYSER Brand: BM Technologies
Price
$1,069.00 CAD
Stock
100+ In Stock

Electrochemical sensor for measuring ORP & temperature.
Features
  • S::can plug & measure

  • Measuring principle: unique, non-porous / non leaking combined reference electrode for technically unrivalled and consistent ORP performance

  • Multiparameter sensor

  • Ideal for surface water, ground water and drinking water, also waste water

  • Long term stable and maintenance free in operation

  • Factory pre-calibrated

  • Mounting and measurement directly in the media (InSitu) or in flow cell

  • Operation via s::can terminals & s::can software

  • Plug connection or fixed cable
  • Specifications

    Accuracy

    • 10 mV

    Approvals & Certifications

    • EMC: EN 50011: 2007, EN 61326: 2006, EN 61000-4, EN 61010-1
    • ISO 9001
    • TÜV
    • UL 508

    Cable Length

    • 24.61 feet (7.5 metres) Fixed Cable

    Communication

    • RS-485

    Consumption

    • Power Consumption: 0.8 W Typical
    • Power Consumption: 1 W, Max.

    Electrical Connectors

    • Plug

    Enclosure, Body Material

    • PVC
    • Stainless Steel

    Environmental Protection

    • IP67
    • IP68

    Flow Rate

    • Flow Velocity: Max.
    • Flow Velocity: Min. 0.01 m/sec

    Measuring Range

    • ± 2,000 mV

    Operating Pressure

    • psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10)

    Operating Temperature

    • 0° to 70° C (32° to 158° F) for Peco
    • 0° to 90° C (32° to 194° F) (Pro)

    Power Supply

    • 9-18 Vdc

    Principle of Operation

    • Potentiometric

    Resolution

    • 1 mV

    Response Time

    • 30 seconds

    Storage Temperature

    • 0° to 60° C (32° to 140° F) for Sensor
    • -5° to 30° C (23° to 86° F) for Electrode

    Supply Voltage

    • 12 Vdc

    Temperature Range

    • 0° to 100° C (32° to 212° F)
