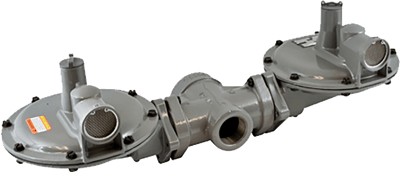

B531 Commercial Regulator
Brand: ItronThe Series B531 is a spring-loaded regulator equipped with a valve body that is effectively two regulators in parallel. This design allows for nearly double the capacity that can be achieved with a single 6 diaphragm regulator.
The B531 design is symmetric about that downstream piping so all parts are identical in both diaphragm cases.
Features- Interchangeable brass orifice
- Combined 54 in² of diaphragm area
- Twin Spring-loaded internal relief valve assemblies
- Field interchangeable adjustment springs
- No special adjustment tools required
- Controlled size breather orifice eliminates pulsation and provides normal actuation at low flows
- Wide range of valve body sizes
Benefits
- Eliminates parallel regulator piping installations
- Light weight
- Fast response protects equipment from shock damage
- Field inspection of the internal monitor and internal relief valves without customer shut-off or by-pass
- Unmatched overpressure protectin with internal monitor plus internal relief options
Specifications
Brand
Outlet Pressure Range
- 4.5” to 15” w.c.
- 0.75 to 2.5 psig
Orifice Size
- 1/2”
- 3/8”
- 5/16” IM
- 5/16”
- 1/4” IM
- 1/4”
- 1/8” IM
- 1/8”
- 3/16”
- 3/16” IM
Operating Temperature
- -20° to 150° F
Valve Seat
- Silicone, Buna-N
Valve Stem
- Anodized Aluminum
Body Material
- Cast Iron
Orifice
- Brass, Aluminum
Diaphragm Material
- Buna-N and Nylon Reinforcing Fabric
