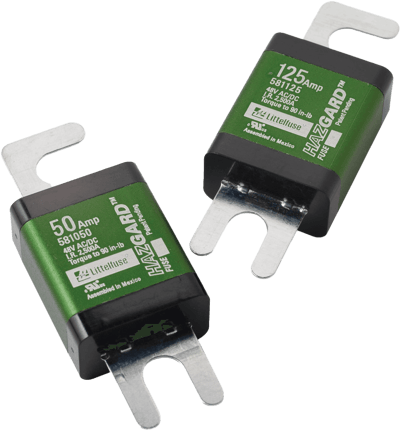

HAZGARD Series - 48 V Lift Truck Fuses
Brand: Littelfuse, IncHAZGARD fuses are designed to provide overcurrent protection for forklifts and other low voltage equipment used in hazardous locations.
This product is UL 248 recognized and has been evaluated for the use in UL 583 type EE and ES applications. Unique design does not require an explosion proof enclosure, saving assembly costs.
Features- Evaluated for use in UL 583 hazardous applications.
- Easily upgrade Type E and ES equipment to Type EE
- Does not require an external enclosure
- Saves space, materials and labor costs
- Steel enclosure provides additional integrity
Specifications
Brand
Voltage Ratings
- CNN_E: 80 Vdc / 125 Vac
- CNN: 48 Vdc / 125 Vac
- CNL: 32 Vdc / 32 Vac
Amperage Ratings
- 35-500 A
Maximum Interrupting Rating
- CNN_E: 2,700 A
- CNN/CNL: 2,500 A
Approval
- CNN_E: cURus (File E71611)
- CNN/CNL: UR (File E71611)
Environmental
- RoHS Compliant, Lead (Pb) Free
Country of Origin
- CNN_E: Mexico
- CNN/CNL: China
- Lift Trucks
- Scissor Lifts
- Pallet Movers
- Low Voltage Battery Operated Equipment Used to Move Hazardous Materials
