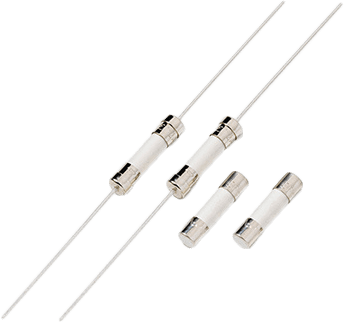

477 Series - 500 VAC/400 VDC 5 x 20 mm Slo-Blo® Type Fuse
Brand: Littelfuse, IncThe 477 Series is the first and smallest 500 VAC and 400 VDC fuse under the class of 5 x 20 mm fuse family. It is designed for circuit protection in the area of high energy applications.
With its DC and AC characteristics, the 477 Series is well suited for high energy or power efficient applications and 3-phase power supplies protection respectively.
In addition, it has interrupting rating (0.5 to 16 A) at 400 Vdc which ensures the circuit is well protected under DC conditions.
Features- DC interrupting current
- 100% Lead-Free and RoHS compliant
- UL and CSA, SEMKO agency approval
Specifications
Brand
Certifications & Approvals
- PSE
- CE
- RoHS
- cURus
- Intertek
- VDE
- TÜV
Ampere Range
- 0.5-16 A
Voltage Rating
- 500 Vac
- 400 Vdc
Interrupting Rating
- 1,500 A / 500 A / 400 A @ 400 Vdc
- 100 A @ 500 Vac
Body Material
- Ceramic
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
Operating Temperature
- -55° to +125° C
- Input of 3 Phase Power Supplies
- Inverter in LCD Backlight Unit
- DC Side of Air-conditioner Unit
