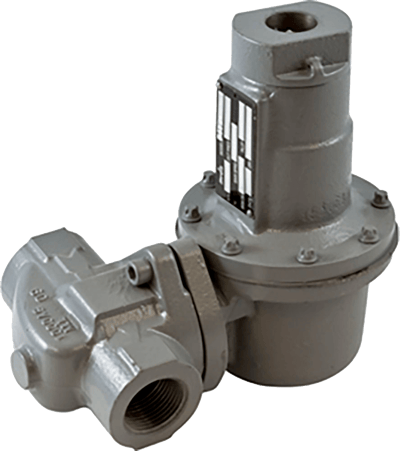

B35 Field Service Regulator
Brand: ItronThe B35 is specially designed for safe, accurate first-stage pressure reduction on high-pressure gas systems. It is a versatile pounds-to-pounds unit which is ideal for high-pressure industrial applications, rural and suburban taps.
Features- Interchangeable brass or stainless steel orifice
- Spring-loaded internal relief valve assembly
- Field interchangeable adjustment spring
- ¾ ” NPT and 1” NPT valve bodies available
- 14 different assembly positions
- External indicator when the regulator has relieved
Benefits
- Economical
- Heavy duty construction with a malleable iron body
- Corrosion Resistant
- Inlet pressure capabilities up to 1,000 PSIG
- No special start up procedures
- Polyurethane seat ensures reliable “lockup” (up to 1,000 PSIG inlet pressure)
- Outlet pressure capabilities of 5 to 150 PSIG
- Seven different orifices from 1/16” to ½ ” in either brass or stainless steel
- Controlled breather orifice size eliminates pulsation and provides normal actuation at low flows
- Relief indicator visible from long distance
- Conforms with B31.8 standard
Specifications
Brand
Body Size
- 3/4” or 1”
Connection Type
- NPT Threaded
Body Material
- Ductile Iron or Steel
Orifice
- Brass (Standard), Stainless Steel (Optional)
Valve Seat
- Polyurethane or Nylon
Valve Stem
- Plated Steel
Diaphragm Material
- Buna-N and Nylon Reinforcing Fabric
Operating Temperature
- -20° to 150° F
