224 Series - 2AG Fast-Acting Subminiature Axial Leaded Glass Body Fuse

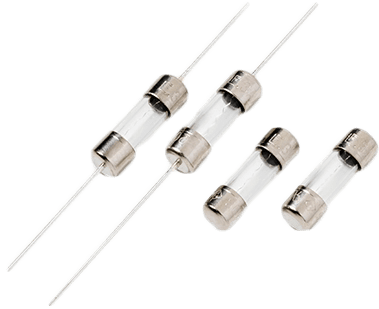

Brand: Littelfuse, IncThe 2AG Fast-Acting Fuses are available in cartridge form or with axial leads. 2AG Fuses provide the same performance characteristics as their 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
Features- In accordance with underwriter’s Laboratories Standard UL 248-14
- Available in cartridge and axial lead form and with various forming dimensions
- RoHS compliant and Lead-free
Specifications
Brand
Certifications & Approvals
- RoHS
- cURus
- CSA
- UL
- CE
- PSE
Opening Time
- 1 s to 4 hours
Ampere Rating
- 0.375-10 A
Voltage Rating
- 250 Vac
- 125 Vac/dc
Interrupting Rating
- 35 A @ 250 Vac
- 10 kA @ 125 Vac/dc
- 500 A @ 125 Vac
- 100 A @ 250 Vac
Operating Temperature
- -55° to 125° C
Body Material
- Glass
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
- As Supplementary Protection in Appliance
- As Individual Protection for Components or Internal Circuits in Utilization Equipment
