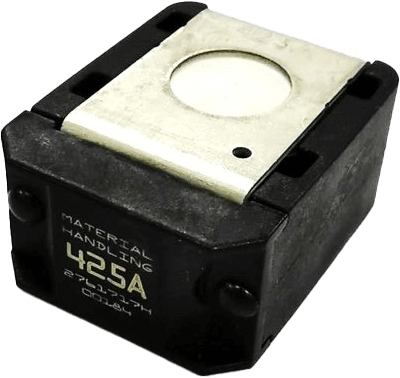

ZCASE M10 Material Handling Series - Zcase M10 Bolt Down Single Material Handling Fuse
Brand: Littelfuse, IncThe Single ZCASE is a Minimal Footprint Bolt Down Fuse optimized for a one bolt connection M10 with a wide rating range from 70 to 600 A in the same packaging size.
The Time Current characteristic is similar to the well known MEGA Design and can be used as full wire protection until 250 A.
Higher ratings fuses are mostly used in trucks, buses, agriculture and construction equipment’s or Material handling for typically Starter application as a protector fuse.
Features- Voltage Rating: 80 VDC
- Interrupting Rating: 2,000 A @ 80 VDC
- Current ratings 70 - 600 A (+ SHUNT)
Specifications
Brand
Certifications & Approvals
- RoHS
Voltage Rating
- 80 Vdc
Current Rating
- 70-600 A
Interrupting Rating
- 2,000 A @ 80 Vdc
Operating Temperature
- -40° to 125° C
Housing Material
- PPA-GF33HS
Terminal Material
- Tin-Plated Copper
Insulating Tube
- Out of Ceramic
Mounting Torque
- M10: 18 Nm ± 2 Nm
- All Commercial Vehicles Applications
- Not Suitable for Passenger Car Applications
