SPXI Series - 1500 Vdc - In-Line Solar Fuses

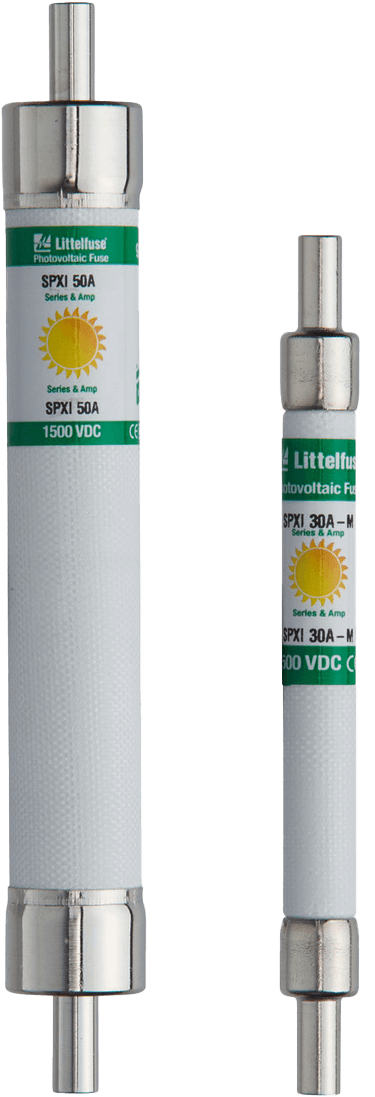

Brand: Littelfuse, IncThe Littelfuse SPXI solar fuse is specifically designed for the protection of photovoltaic (PV) systems.
It integrates into an in-line assembly within a wire harness and can be electrically insulated by either overmolding or using heat-shrink.
Littelfuse offers multiple ampere ratings to match specific requirements in a variety of applications.
Features- Offers higher amperage protection in less space for increased design flexibility
- One-piece cap design, without joints, offers easier wire crimping and more streamlined molding
- No fuse holder required helps save space, time, and money
- 50,000 A interrupting rating
- UL 248-19 Recognized
Specifications
Brand
Voltage Rating
- 1500 Vdc
Amperage Rating
- 1, 2, 2.25, 2.5, 3, 3.5, 4, 4.5, 5, 6, 8, 10, 12, 15, 16, 20, 25, 30, 32, 35, 40, 45, 50, 55, 60 A
Interrupting Rating
- SPXI 1-30 A and SPXI-B 1-20 A: 30 kA
- SPXI 35-50 A and SPXI-B 35-60 A: 50 kA
- SPXI-M and SPXI-BM 25-32A: 50 kA
Time Constant
- ≤ 1 ms
Material
- Body: Melamine
- Caps: Copper Alloy (Nickel-Plated)
Approvals
- UL Recognized (File E339112)
- TÜV (Cert: J 50495785)
Applicable Standards
- UL 248-1, 248-19
- IEC 60269-6 (electrically only)
Environmental
- RoHS Compliant
- REACH
Country of Origin
- Mexico
US Patent
- 9,564,281
- Photovoltaic High-Capacity Homerun, Trunk Harness, and Wire Harness
