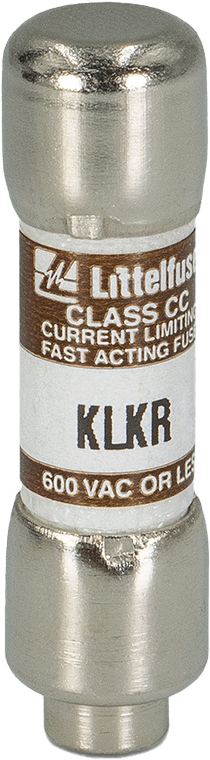

KLKR Series - Class CC Fast-Acting Fuse
Brand: Littelfuse, IncKLKR series Class CC fuses are fast-acting fuses intended for general-purpose branch circuit protection.
Their compact size, fast-acting overload response, and their highly current limiting design make them ideal for use in OEM equipment and control panels because Solid-state devices such as SCRs and other electronic equipment generally require fast-acting protection.
Features- Meets UL and CSA standards
- Class CC fuses are the smallest 600 V, 200,000 A.I.R. fuses approved for branch circuit protection
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short-circuit currents
Specifications
Brand
Certifications & Approvals
- CE
- UL
- CSA
- RoHS
Voltage Rating
- AC: 600 V
- DC: 300 V
Ampere Range
- 1/10-30 A
Interrupting Rating
- DC: 20 kA
- AC: 200 kA RMS Symmetrical
Body Material
- Melamine
Cap Material
- Nickel-Plated Bronze
Weight
- 1/10-1 A: 0.030 lb (13.61 g)
- 1-1/2-30 A: 0.034 lb (15.42 g)
Opening
- Fast-Acting (F)
Size
- Class CC
- General Purpose Protections for Equipment Requiring Fast Overload Protection
