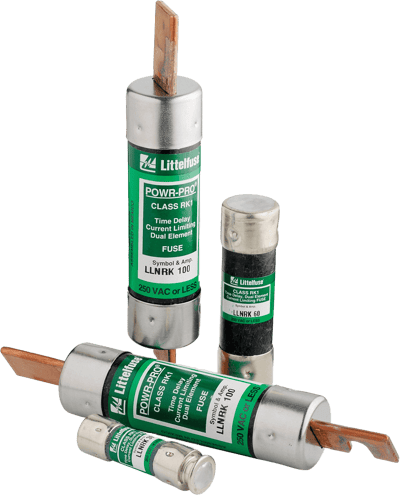

LLNRK Series - UL Class RK1 Dual Element Time-Delay Fuse
Brand: Littelfuse, IncLittelfuse LLNRK series POWR-PRO™ fuses provide superior overload and short circuit protection for service entrance, main, feeder and general-purpose branch circuits up to 600 amperes.
LLNRK series fuses can be installed in existing Class H fuse blocks to upgrade systems containing lower interrupting rating Class H one-time or renewable fuses.
Features- Extremely current limiting - Reduces damage to circuits and equipment under short-circuit conditions. Stops damaging short circuits faster than any mechanical protective device
- 300 kA Interrupting Rating - Littelfuse self-certified to 300,000 amperes as standard. Meets future trend towards higher available short circuit currents
- Reduced costs - Current limiting design often permits use of readily available, less costly equipment. Low resistance design reduces power consumption and utility bills
- Excellent time delay - True dual-element construction, with separate non-fatiguing thermally-reversible spring-loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly. Eliminates needless downtime caused by power surges or equipment demands
Specifications
Brand
Certifications & Approvals
- CE
- UL
- CSA
- QPL
Voltage Rating
- 250 Vac/125 Vdc
Interrupting Rating
- DC: 20 kA
- AC: 200 kA RMS Symmetrical, 300 kA RMS Symmetrical (Littelfuse Self-certified)
Ampere Range
- 1/10-600 A
Opening
- Slo-Blo/Time Lag (T)/Time Delay
- All General-purpose Circuits
- Motors
- Transformers
- Solenoids
- Fluorescent Lighting
- All System Components with High In-rush Currents
