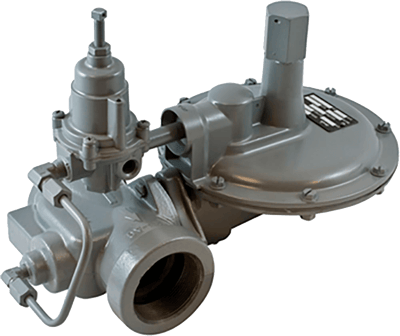

CL231 Regulator
Brand: ItronThe CL231 regulator is designed primarily for use in medium size commercial and industrial installations requiring highly accurate pressure regulation.
The CL231 can produce substantial savings for users in lower initial costs, lower installation costs, and lower maintenance costs.
Features- Internal bleed to prevent vapor lock-up
- Internal lower diaphragm chamber pressure flow control
- Wide range of set points available with minimum number of springs
- Compact regulator able to provide flow rates up to 7500 CFH
Benefits
- Lower installation and maintenance costs
- Compact Design
- Constant pressure loading great for fixed factor measurement accuracy
- Stop stem in pilot insures token internal relief on ‘R’ models.
Specifications
Brand
Outlet Pressure Range
- 1.0 to 21.5 psig
Orifice Size
- 1/4”, 3/8”, 1/2”
Operating Temperature
- -20° to 150° F
Body Material
- Cast Iron
Valve Seat
- Buna-N, Silicone
Valve Stem
- Plated Steel (Aluminum Alloy 2011-T3)
Diaphragm Material
- Buna-N and Nylon
