Images are representations only.

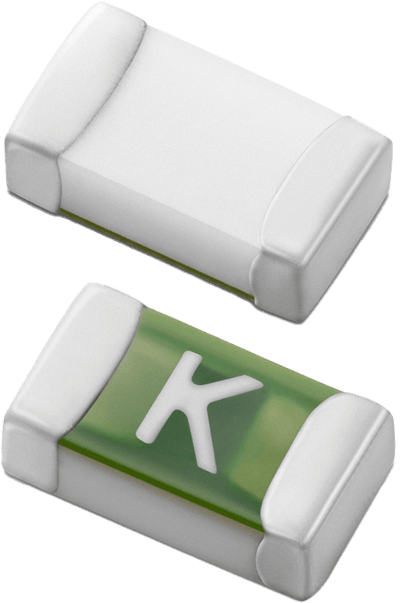

400M Series - 0603 Low Resistance Fast Acting Fuse
Brand: Littelfuse, IncThe 400M Series is an 0603 fast-acting fuse that is best suited for applications that require relatively low resistance.
The part is 100% Lead-free, RoHS compliant, and Halogen-free fuse. It is designed to provide over-current protection to circuits that operate under high operating temperatures of up to 150°C.
Features- Low Resistance
- Fast response to faulty current to ensure over-current protection to sensitive electronic component
- Operating temperature from -55°C to +150°C
- 100% Lead-free, Halogen-free and RoHS compliant
Specifications
Brand
Materials
- Body: Advanced Ceramic
- Terminations: Ag/Ni/Sn (100 % Lead-free)
- Element Cover Coating: Lead-free Glass
Moisture Sensitivity Level
- IPC/JEDEC J-STD-020C, Level 1
Solderability
- IPC/ECA/JEDEC J-STD-002B, Condition B
Humidity Test
- MIL-STD-202, Method 103B, Conditions D
Resistance to Solder Heat
- MIL-STD-202, Method 210F, Condition B
Moisture Resistance
- MIL-STD-202, Method 106G
Thermal Shock
- MIL-STD-202, Method 107, G Condition B-3
Mechanical Shock
- MIL-STD-202, Method 213B, Condition A
Vibration
- MIL-STD-202, Method 201A
Vibration, High Frequency
- MIL-STD-202, Method 204D, Condition D
Dissolution of Metallization
- IPC/ECA/JEDEC J-STD-002B, Condition D
Terminal Strength
- IEC 60127-4
- Burn-In Test
