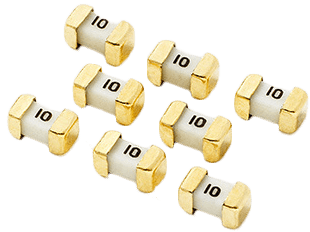

458 Series - 1206 Size NANO²® Fast-Acting Fuse
Brand: Littelfuse, IncThe 458 Series Nano2® Fuse is an ultra-small, square surface mount fuse designed to support a variety of space constrained overcurrent protection applications.
Offering a 1206 size footprint, it is the smallest wire-in-air type surface mount fuse offered by Littelfuse.
Features- Surface Mount Fuse
- Fully compatible with lead free soldering profiles
- RoHS Compliant and Halogen Free
- Available in ratings of 1 to 10 Amperes
- Recognized to UL/CSA/NMX 248-1 and UL/CSA/NMX 248-14
Specifications
Brand
Materials
- Body: Ceramic
- Cap: Gold Plated Brass
Product Marking
- Body: Current Rating
Insulation Resistance
- MIL-STD-202, method 302, Test Condition A (10,000 ohms, Min.)
Solderability
- MIL-STD-202, Method 208
Resistance to Soldering Heat
- MIL-STD-202, Method 210,Test Condition B (10 sec at 260° C)
Operating Temperature
- -55° C to 125° C with proper derating
Thermal Shock
- MIL-STD-202, Method 107, Test Condition B (5 cycles -65° C to 125° C)
Vibration
- MIL-STD-202, Method 201 (10-55 Hz)
Moisture Sensitivity Level
- J-STD-020, Level 1
Moisture Resistance
- MIL-STD-202 Method 106, High Humidity (90-98 % Relative Humidity), Heat (65° C)
Salt Spray
- MIL-STD-202, Method 101, Test Condition B
Mechanical Shock
- MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 milliseconds)
Approvals
- UL
- Notebook PC
- LCD Backlight Inverter
- LCD Panel
- DC/DC Converter
- Battery Pack
- Car Navigation System
- Network Equipment
- Telecom Equipment
- Electronic Signage
- Portable Consumer Electronics
