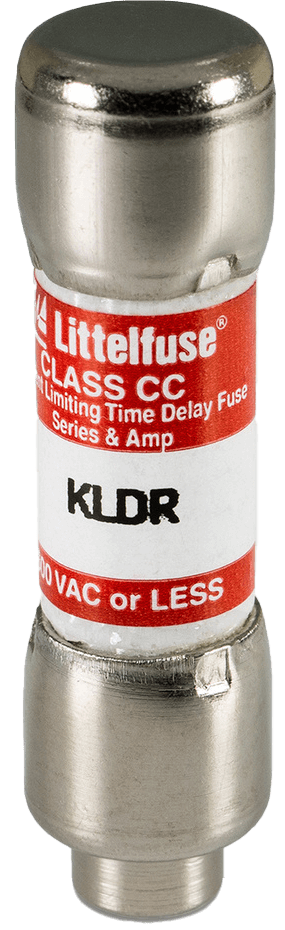

KLDR Series - Class CC Time-Delay Fuse

Brand: Littelfuse, Inc

KLDR time-delay fuses are designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle.

They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.
Features
  • Excellent short-circuit protection - Improve safety through faster response to fault currents
  • Current limiting - Restricts fault currents to provide high degree of circuit protection
  • Rejection feature - Prevents use of fuses with lower interrupting ratings or voltage when used with corresponding fuse holders

Specifications

Certifications & Approvals

  • CE
  • UL
  • CSA
  • RoHS

Voltage Rating

  • AC: 600 V
  • DC: 300 V

Ampere Range

  • 1/10-30 A

Interrupting Rating

  • DC: 20 kA
  • AC: 200 kA RMS Symmetrical

Body Material

  • Melamine

Cap Material

  • Nickel-Plated Bronze

Weight

  • 0.019 lb (8.62 g)

Opening

  • Slo-Blo/Time Lag (T)/Time Delay

Size

  • Industrial Cartridge
  • Knife-Blade
  • Class CC

  • Transformer Protection
