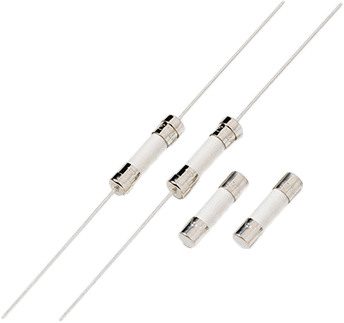

216 Series - 5 x 20 mm Fast-Acting Ceramic Body Cartridge Fuse
Brand: Littelfuse, Inc5 x 20 mm fast-acting ceramic body cartridge fuse designed to IEC specification.
Features- Designed to International (IEC) Standards for use globally
- Meets the IEC 60127-2, sheet 1 specification for fast-acting fuses
- Available in cartridge and axial lead form
- RoHS compliant and lead-free
Specifications
Brand
Certifications & Approvals
- RoHS
- cURus
- CSA
- CE
- PSE
- TÜV
- CCC
- KTL
- DVE
Opening Time
- 0.003 s to 60 minutes
Ampere Rating
- 0..05-16 A
Voltage Rating
- 250 V
Interrupting Rating
- 1,500 A @ 250 Vac
- 750 A @ 250 Vac
Operating Temperature
- -55° to 125° C
Body Material
- Ceramic
Material of Construction
- Cap: Nickel-Plated Brass
- Leads: Tin-Plated Copper
- Filler (160 mA-16A): Sand
- As Supplementary Protection in Appliance
- As Individual Protection for Components or Internal Circuits in Utilization Equipment
