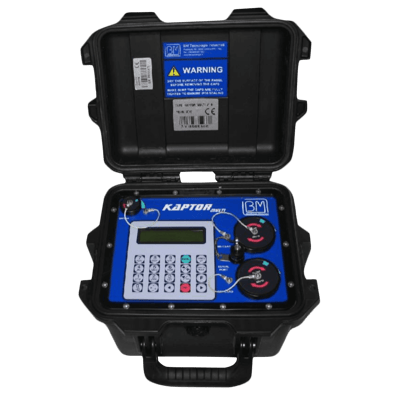

TTFM100-V18-KAPTOR Ultrasonic Module
Brand: BM TechnologiesFeatures:
Specifications
Brand
Accuracy
- ± 1 %
Ambient Temperature Range
- -10° to 50° C (14° to 122° F)
Applications
- Butane
- Calibration of Numerical Models
- District Metered Area (DMAs)
- Extraneous Water in Sewerages
- Fire Protection Systems
- Fuel Oil
- Gasoline
- Hydroelectric Power Stations
- Industrial Processes Monitoring
- Oil
- Propane
- Pumping Station Control
- Wastewater Treatment Plants
- Water Losses in Acqueduct, Drinking Water, Sea Water
Cable Length
- 16.5 feet (5 metres)
- 3 feet (1 metre)
Communication
- Modbus
- RS-485
Current
- Output Current: 4-20 mA
Diameter
- 0.59” to 236.2” (15 to 6,000 mm) for Internal
Enclosure, Body Material
- POM
Environmental Protection
- IP68
Frequency
- 0.6 MHz for TL1-NG-05-KPT
- 1 MHz for TM1-NG-05-KPT
- 1.5 MHz for TS2-NG-05-KPT
- Open Collector: 12 to 9,999 Hz
Linearity
- 0.5%
Materials of Construction
- Pipe Material: Aluminum
- Pipe Material: Carbon Steel
- Pipe Material: Cast Iron
- Pipe Material: Copper
- Pipe Material: Ductile Iron
- Pipe Material: Fiber Glass
- Pipe Material: PVC
- Pipe Material: Stainless Steel
Measuring Range
- 0 to 20,000 ppm
Pipe Size
- 0.5” to 4” (15 to 100 mm) for TS2-NG-05-KPT
- 11.8” to 236.2” (300 to 6,000 mm) for TL1-NG-05-KPT
- 2” to 40” (50 to 1,000 mm) for TM1-NG-05-KPT
Relay Output
- 1 A at 125 Vac
- 2 A at 30 Vdc for Totalizer Pulse Alarm
Repeatability
- ± 0.2 %
- ± 0.5 %
Temperature Range
- -10° to 50° C (14° to 122° F)
