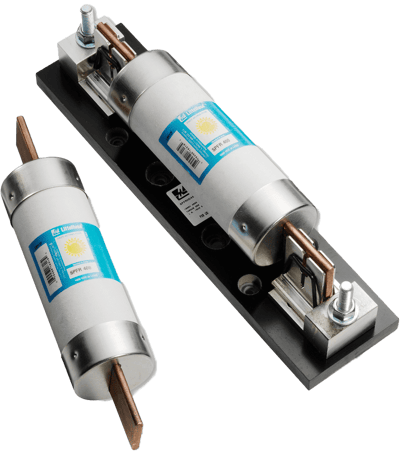

Images are representations only.
SPFR Series - 1000 VDC Solar Fuse - UL Class R Size
Brand: Littelfuse, IncThe SPFR series was designed to meet the growing needs of the solar industry with higher amperage and voltage requirements.
It was developed specifically for solar applications, ranging from 250 A to 400 A.
Features- DC Voltage rating meets European system and North American utility scale requirements
- Multiple amperage ratings
- RoHS compliant
- UL Class H Dimensions
- Full Range Protection
Specifications
Brand
Voltage Rating
- 1000 Vdc
Interrupting Rating
- 10,000 A, Time Constant less than 1 ms
Amperage Rating
- 250 - 400 A
Approvals
- UL 4248 Recognized (File: E14721)
- CSA (File: 29862)
Environmental
- RoHS Compliant
Fuse Type
- Fast-acting
- Solar Inverters
- High Amperage Combiner Boxes
