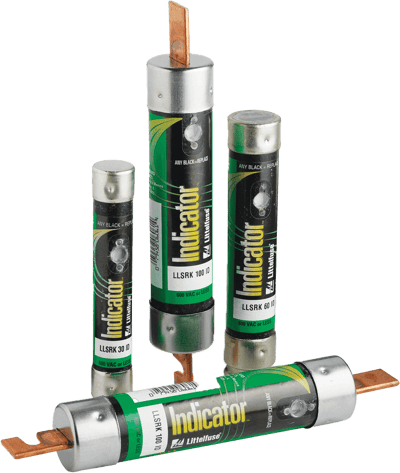

LLSRK_ID Series - UL Class RK1 Dual Element Time-Delay Fuse
Brand: Littelfuse, IncThe all-new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits.
The patented Indicator™ technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults.
In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
Features- Reduce down-time - The indicating window of the LLSRK_ID immediately identifies the open fuse. If the window is dark, the fuse has opened. It’s that simple. Maintenance personnel can immediately determine that there is an open fuse
- Reduce fuse inventory - The superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
- Reduce nuisance opening - Indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
Specifications
Brand
Certifications & Approvals
- CE
- UL
- -40° to 85° C (-40° to 185° F)
- QPL
Voltage Rating
- 600 Vac/300 Vdc
Interrupting Rating
- Silicone Rubber -40° to 85° C (-40° to 185° F)
- AC: 200 kA RMS Symmetrical, 300 kA RMS Symmetrical (Littelfuse Self-certified)
Ampere Range
- 1/10-600 A
Opening
- Slo-Blo/Time Lag (T)/Time Delay
Size
- Industrial Cartridge
- Knife-Blade
- All General Purpose Circuits
- Motors
- Transformers
- Safety Upgrades
