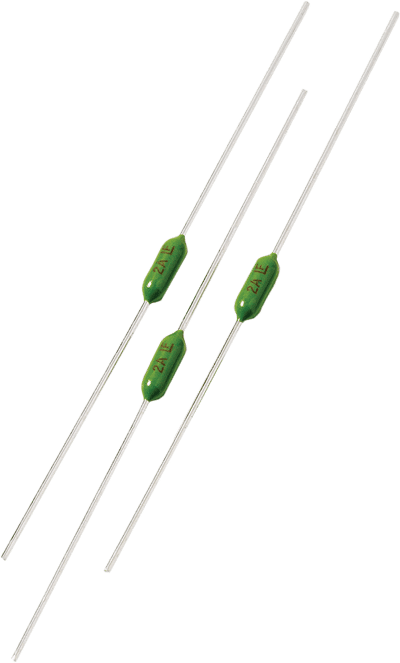

472 Series - PICO® II Time Lag Subminiature Axial Leaded Fuse
Brand: Littelfuse, IncThe 472 Series PICO® II, 125V rated time-lag fuse is designed for applications that require moderate in-rush withstand and is in a space-saving subminiature package.
Features- Moderate in–rush withstand
- Small size
- Wide range of current ratings available (500mA to 5A)
- RoHS compliant
- Halogen-free available
- Wide operating temperature range
- Low temperature de-rating
Specifications
Brand
Materials
- Body: Ceramic
- Leads: Tin-Coated Copper
- Encapsulated: Epoxy-Coated Body
Product Marking
- Body: Brand Logo, Current Rating, T (Time Lag Fuse)
Solderability
- MIL-STD-202, Method 208
Lead Pull Force
- MIL-STD-202, Method 211, Test Condition A (will withstand a 7 lb Axial pull test)
Operating Temperature
- 55° to +125° C with proper de-Rating
Thermal Shock
- MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 ms)
Vibration
- MIL-STD-202, Method 201 (10-55 Hz), Method 204, Test Condition C (55-2000 Hz at 10 G’s Peak)
Approvals
- UL
- Flat–Panel Display TV
- Game Console
- Lighting
- Power Supply
- Audio/Video Equipment
