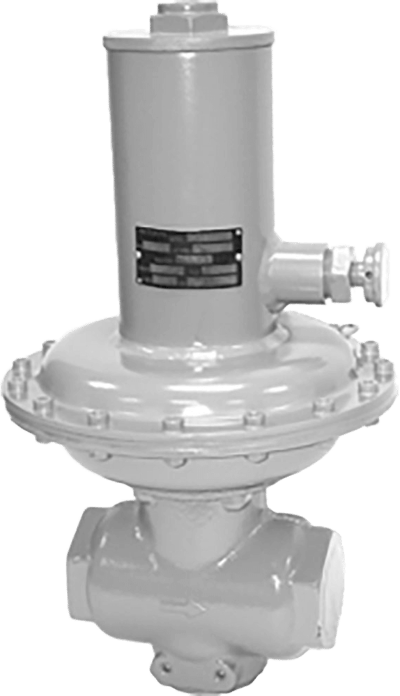

RB 1700 Pressure Regulator

Brand: Itron

The RB1700 regulator is designed for commercial applications: industrial boilers and furnaces, appliance pressure regulation, secondary regulation of plant distribution piping, and all installations with continuous consumption and rapid flow rate variations, such as burners, industrial ovens, boilers, etc.

As a space saver, this regulator is suitable for installing in cabinets. The RB1700 is a direct-acting, spring-loaded regulator. The balanced valve design ensures a constant outlet pressure when the upstream pressure varies. This eliminates the need for orifice size changes arising from the different inlet pressure ranges.
Features
  • Interchangeable adjustment spring
  • Balanced valve design
  • Downstream control
  • Direct acting spring loaded design
  • Over pressure shut-off (OPCO) available
  • Under pressure shut-off (UPCO) available
Benefits
  • Accurate regulation
  • High flow accuracy
  • Fast response
  • Easy maintenance
  • Compact size
  • Rugged construction for durability
  • Balanced valve design eliminates inlet pressure effect
  • Wide range of outlet pressure
  • Horizontal or Vertical mounting

Specifications

Brand

Operating Temperature

  • -20° to 140° F

Maximum Inlet Pressure

  • 230 psig

Vent Connection

  • 1/4” NPT

Mounting Position

  • Horizontal or Vertical

Body Size

  • 1-1/2”

Body Material

  • Ductile Iron

Orifice

  • Stainless Steel

Valve Seat

  • Brass with Vulcanized Buna-N

Valve Stem

  • Stainless Steel

Diaphragm Material

  • Buna-N and Nylon Reinforcing Fabric
