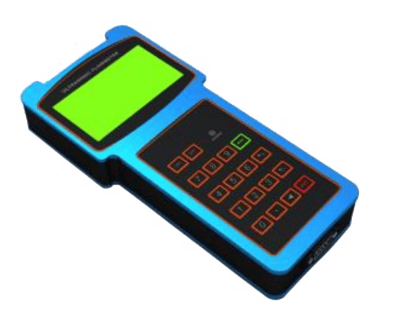

TTFM10B-HH-NG Ultrasonic Transit Time Flow Meter

Brand: BM Technologies
Request Information
Favorite

The Transit Time Flow Meter of TTFM100 NEW GENERATION (NG) series measures flow rate by calculating the spreading time of an ultrasonic wave in a liquid, going upstream and downstream into a pipe.

This flow meter is mostly used to measure the flow rate of homogeneous fluids, also with a quite high percentage of suspended solids.
Features
  • High Accuracy Measurement: Linearity: better than 0.5% - Repeatability: better than 0.2%, - Accuracy: better than ± 1%

  • Wide Measuring Range with Clamp-on Sensors: Three types of clamp-on sensors for size from DN15-100, DN50-10000, DN300-6000, no pressure drop, no pipe disturbance

  • Italian, French or English Menu: TTFM100B-HH-NG can support Italian, English, Spanish, French or Turkish menus. German will be implemented shortly.

  • Battery and Power Supply: 3 x NIMH rechargeable battery type AA 2100 mAh for 10 hours of continuous operation. Charger 100 to 240 Vac adapter.

  • Protection Grade: IP20 handled unit; IP68 Clamp-on Sensors with BNC connectors

  • Output: RS232 to download the stored data by free software HyperTerminal or RS232 Data Logger

  • Data Logger: - Built-In 24 K Data Logger can store over 2000 lines of data.

  • Standard Configuration: 1 x Handled Unit; 2 x Couples of clamp-on sensors; 2 x 5 mt spiral cables for clamp-on sensors connection; 2 x Stretcher 3 mt; 1 x Data Line cable ;1 x Power Cord; 1 x Coupling Grease, 1 x Carrying Case. Optional: 2 x 10 mt cables for clamp-on sensors connection.

    • Specifications

    Brand

    Accuracy

    • ± 1 %

    Applications

    • Car Industries
    • Extraction Industries
    • Flow Balancing
    • Food, Paper & Pharmaceutical Industries
    • Hydro-Electric, Cooling, Anti-Fire Stations
    • Oil & Chemical Industries
    • Water District
    • Water Treatment, Slurry & Process Water Pumping

    Battery Life

    • 3 x NIMH Rechargeable Battery Typical AA 2100 mAh for 10 Hours of Continuous Operation

    Cable Length

    • 2 x 10 metres (32.8 feet) for Clamp-On Sensors

    Communication

    • RS-232

    Environmental Protection

    • IP20 Handled Unit
    • IP68 Clamp on Sensors with BNC Connectors

    Linearity

    • 0.5%

    Power Supply

    • 100-240 Vac Adapter

    Repeatability

    • 0.2%

    Size

    • Clamp: 1/2” to 4” (15 to 100 mm)
    • Clamp: 12” to 236” (300 to 6,000 mm)
    • Clamp: 2” to 400” (50 to 10,000 mm)
