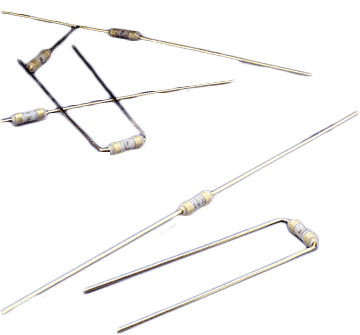

PICO® High-Reliability Very Fast-Acting Subminiature Radial Leaded Fuse

Brand: Littelfuse, Inc

The 265/266/267 Series are high–reliability PICO® Fuses, that are very fast-acting, with an insulating sleeve.

These fuses provide supplemental protection in end-use equipment to provide protection for components or internal circuits. They are not suitable for branch or feeder circuit use.

The Military version of the 265 Series (except 1/16 ampere rating) is available in FM08A on QPL for MIL-PRF-23419/8. To order, change 265 to 267
Features
  • Military grade available
  • RoHS compliant
  • Available from 62mA to 15A
  • Available in axial and radial leaded
  • Available in miniature and subminiature formats

Specifications

Materials

Weight

Lead Pull Force

  • MIL-STD-202, Method 211, Test Condition A (will withstand a 5 lb axial pull test)

Sampling

  • Per MIL-STD-105, Inspection Level II

Operating Temperature

  • -55° to +125° C

Shock

  • MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 msecs.)

Vibration

Salt Spray

  • MIL-STD-202, Method 101, Test Condition B

Seal Test

  • MIL-STD-202, Method 112, Test Condition A

Insulation Resistance (After Opening)

  • MIL-STD-202, Method 302, Test Condition A (1/2 Megohm minimum)

Thermal Shock

  • MIL-STD-202, Method 107, Test Condition B (-65° to 125° C)

Moisture Resistance

  • MIL-STD-202, Method 106

Fuses to MIL SPEC

Options

Certificates

  • CSA
  • QPL
