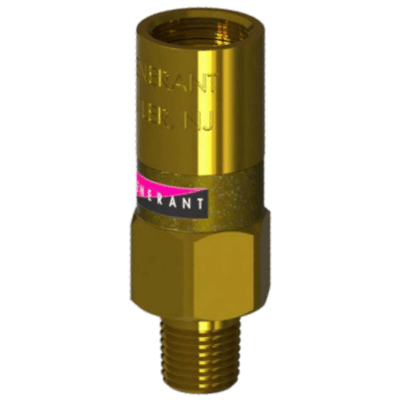

Series Brass IRV Industrial Relief Valve

Brand: Generant Inc

The Generant Series Brass IRV, Industrial Relief Valve is a spring reference over pressure protection device.

The valve can be ordered with set pressures ranging from psig: 10 to 750 (kPa: 69 to 5,170, bar: 0.69 to 51.7) and comes factory preset and permanently locked.

Relief pressure cannot be altered or adjusted in the field. Seat and poppet geometry combined with optimized spring ranges provide high flow rates with minimum pressure accumulation.

Relief pressure can be discharged to atmosphere or to a downstream connection. For severe service applications and set pressures above psig: 50 (kPa: 345, bar: 3.45), specify optional PTFE seals.
Features
  • Supplied factory preset set and permanently locked for tamper proof service
  • 100% factory tested for leakage, crack and reseal performance
  • High flow capacity and excellent reseal performance
  • Discharge to atmosphere or inline piping configurations
  • Optional deflector cap available for diverting exhausted gas to atmosphere
  • Available cleaned and packaged for oxygen service

Specifications

Brand

Enclosure, Body Material

  • Brass

Materials of Construction

  • Poppet, Seat Rivet, Spring Retainer, In-Line Adapter: CDA 360 Brass, ASTM B16

NPT Connection

  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

Pressure Range

  • FKM & Fluorosilicone - psi: 10 to 750 (kPa: 69 to 5,170, bar: 0.69 to 51.7)
  • PTFE & PCTFE - psi: 50 to 750 (kPa: 345 to 5,170, bar: 3.45 to 51.7)

Seat / Seal Material

  • Seal: FKM
  • Seal: Fluorosilicone
  • Seal: PCTFE
  • Seal: PTFE

Spring Material

  • 631 Stainless Steel (17-7 PH), ASTM A313
  • Adjustment: 302 Stainless Steel - ASTM A313

Temperature Range

  • -196° to 190° C (-320° to 375° F)

Tolerance

  • Factory Set: ± 5 % of Specified Pressure
