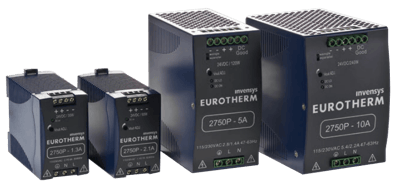

2750P 24 Vdc DIN Rail Power Supply
Brand: EurothermIdeal for use with the T2750/T2550 and 2500 Programmable Automation Controller series, the 2570P delivers a range of high performance, DIN rail mounted switched mode power supplies, that easily meet the demanding requirements of modern technical specifications.
The highly stable 24 Vdc supplies come in four current ratings 1.3 A, 2.1 A, 5 A and 10 A.
A novel retaining system allows easy DIN rail attachment, just insert and click into place, with no tools required for assembly or removal.
The 2750P range has everything neatly arranged on the clearly and well-labelled front panel.
The terminals easily accessible, positioned on the front edge of the device.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 5
- Rating - 30 W, 1.3 A Supply
100+ In Stock
$2,479.00
CAD
Does not ship to OH, United States
- Rating - 120 W, 5 A Supply
50+ In Stock
$1,468.00
CAD
Does not ship to OH, United States
- Rating - 50 W, 2.1 A Supply
50+ In Stock
$2,202.00
CAD
Does not ship to OH, United States
- Rating - 240 W, 10 A Supply
22 In Stock
$918.00
CAD
Does not ship to OH, United States
- Rating - External ORing Diode Module (For PSU Redundancy)
2 In Stock
$1,155.00
CAD
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- CE
- EMC (89/336/EEC) Emissions: EN 61000-6-3, EN 55011, EN 55022 Class B Radiated & Conducted Including Annex A, Immunity: EN 61000-6-2, EN 61000-4-2
- RoHS
- UL 508 Listed, EN 60950-1
Current
- Input Inrush Current (115/230 Vac): 24 A/48 A - 2750P/5A0
- Input Inrush Current (115/230 Vac): 30 A/60 A - 2750P/10A
- Input Inrush Current (115/230 Vac): 35 A/45 A - 2750P/1A3
- Input Inrush Current (115/230 Vac): 35 A/50 A - 2750P/2A1
- Output Current: 1.3 A - 2750P/1A3
- Output Current: 10 A - 2750P/10A
- Output Current: 2.1 A - 2750P/2A1
- Output Current: 5 A - 2750P/5A0
- Supply Current (115/230 Vac): 0.7 A/0.4 A - 2750P/1A3
- Supply Current (115/230 Vac): 1.1 A/0.7 A - 2750P/2A1
- Supply Current (115/230 Vac): 2.8 A/1.4 A - 2750P/5A0
- Supply Current (115/230 Vac): 5.4 A/2.2 A - 2750P/10A
Display
- LED Display
Frequency
- Supply Frequency: 50/60 Hz
Humidity
- Operating: 20 to 90 % Relative Humidity, Non-Condensing
Mounting
- DIN Rail Mounting
Operating Temperature
- -10° to 60° C (14° to 140° F)
Output
- At Nominal Power: 24.5 V ± 1 %
Power Supply
- 24 Vdc
Storage Temperature
- -25° to 85° C (-13° to 185° F)
Supply Voltage
- 85-230 Vac (90-375 Vdc)
Update Time
- Hold Up Time (230 V): > 25 milliseconds - 2750P/1A3, 2750P/2A1
- Hold Up Time (230 V): > 30 milliseconds - 2750P/5A0, 2750P/10A
