SPXVS Series - 1500 Vdc Solar Fuse

Brand: Littelfuse, Inc

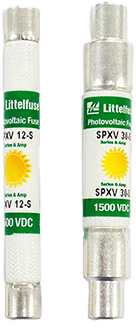

The Littelfuse SPXV-S Series silver-plated string fuse has been specifically designed for the protection of photovoltaic (PV) systems.

It is available in multiple amperage ratings to match various requirements in a range of applications.
Features
  • Offers higher amperage protection in less space for increased design flexibility
  • Full range, fast-acting fuse helps eliminate common low-overload faults
  • Silver-plated caps help improve contact resistance for better conductivity
  • Up to 50,000 A interrupting rating
  • 10 x 85 mm package size
  • UL248-19 Listed
  • Meets IEC 60269-6 electrical performance requirements

Specifications

Voltage Rating

  • 1500 Vdc

Amperage Rating (A)

  • 1, 2, 2.25, 2.5, 3, 3.5, 4, 4.5, 5, 6, 8, 10, 12, 15, 16, 20

Interrupting Rating

  • 30 kA (50 kA Self-Certified)

Time Constant

  • ≤ 1 millisecond

Material

  • Body: Melamine
  • Caps: Copper Alloy (Silver Plated)

Approvals

  • cULus (File: E339112)

Applicable Standards

  • IEC 60269-6
  • UL 24 8 -1, 24 8 -19

Environmental

  • RoHS Compliant
  • REACH

Country of Origin

  • Mexico

  • Inverters
  • Combiner Boxes
