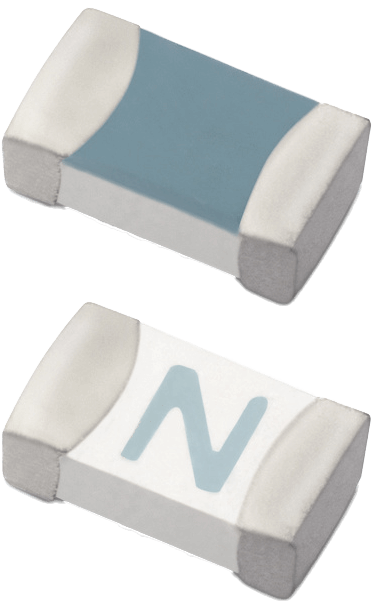

438GT Series - 0603 Fast Acting Fuse
Brand: Littelfuse, IncThe 438GT Ceramic Fuse series is a 100% Lead Free, RoHS compliant and Halogen free series designed specifically to provide over-current protection to circuits that see high working ambient temperatures (up to 150°C) and high inrush currents.
The General design ensures excellent temperature stability and performance reliability.
This higher I2t values which is typical in the Littelfuse Ceramic Fuse Family ensures high inrush current withstand capability.
Features- Fast response to faulty current to ensure over-current protection to sensitive electronic component.
- Operating Temperature from -55°C to +150°C
- High I2t Value
- Suitable for both leaded and lead-free reflow/wave soldering
- 100% Lead-free, Halogen-Free and RoHS compliant
Specifications
Brand
Materials
- Body: Advanced Ceramic
- Terminations: Ag/Ni/Sn (100 % Lead-free)
- Element Cover Coating: Lead-free Glass
Moisture Sensitivity Level
- IPC/JEDEC J-STD-020, Level 1
Humidity
- MIL-STD-202, Method 103, Condition D
Solderability
- IPC/EIC/JEDEC J-STD-002, Condition B
Resistance to Soldering Heat
- MIL-STD-202, Method 210, Condition B
Moisture Resistance
- MIL-STD-202, Method 106
Thermal Shock
- MIL-STD-202, Method 107, Condition B-3
Mechanical Shock
- MIL-STD-202, Method 213, Condition A
Vibration
- MIL-STD-202, Method 201
Vibration, High Frequency
- MIL-STD-202, Method 204, Condition D
Dissolution of Metallization
- IPC/EIC/JEDEC J-STD-002, Condition D
Terminal Strength
- IEC 60127-4
Approvals
- UL
- CSA
- Handheld electronics
- LCD Display
- Battery Packs
- Hard Disk Drives
- SD Memory Cards
