828 Series - 1000VDC 10 x 38 mm High Voltage Cartridge Fuses
Brand: Littelfuse, IncThe 828 series fuses are specifically designed and tested to the circuit protection needs of compact auto-electronics applications, which is 1000 Vdc rated with remarkable interrupting rating, Littelfuse internal AEC Q200 compliance, can be used on the On-board charger and power distribution unit for electric vehicles.
With available of through hole and bolt down versions, it’s flexible for the either PCB or screw assembly.

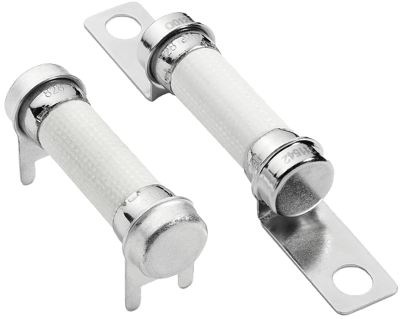

Features- Rated for 1,000V DC with interrupting rating of 10,000A and 15A-30A nominal current rating in small package
- Littelfuse Internal AEC Q200 compliance
- End caps with integrated stand-off leads & bolt down
- Compact body size of 10x38mm
- Operating temperature range from -55°C to 125°C
- Suitable for use as over-current protection in high DC output (up to 1,000V) and DC/DC convert
- Eliminates the need for mounting accessories and/or lead-forming processes
- Provides reliable protection in extreme temperature environments
Specifications
Brand
Materials
- Body: Glass fiber
- Cap: Tin-Plated Copper Alloy
Mechanical Shock
- MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 ms)
Solderability
- Reference MIL-STD-202 Method 208
Product Marking
- Brand Logo, Current and Voltage Ratings
Resistance to Solder Heat
- MIL-STD-202, Method 210 Test Condition B (10 sec at 260° C)
Operating Temperature
- -55° to +125° C
Vibration
- MIL-STD-202G, Method 201A
Salt Spray
- MIL-STD-202G, Method 101E, Test Condition B
Approvals
- UL
- On-Board Charger
- Power Distribution Unit
