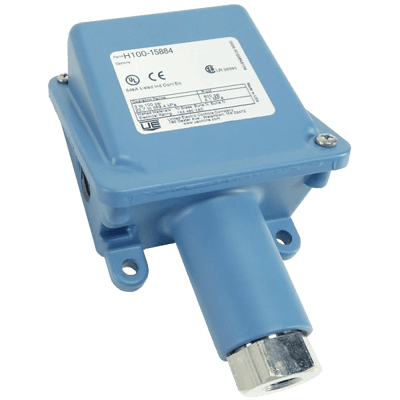

100 Series Type H100 Model 15884 Pressure Switch
Brand: United Electric Controls Ltd
The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment.
The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch.
Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps and compressors), inputs for annunciator panels, and fire suppression systems.
Features- Single Switch Output
- Epoxy Coated and Gasketed Cast Aluminum Enclosure Type 4X
- Tamper-Resistant Set Point “Lock”
- Heat Trace and Freeze Protection Thermostats
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
- Model - 15884
- Factory Set Point - Factory Set One Switch
- Tag - No Tag
100+ In Stock
$2,232.00
CAD
Does not ship to OH, United States
- Model - 15884
- Factory Set Point - Factory Set One Switch
- Tag - Stainless Steel ID Tag & Wire Attachment
50+ In Stock
$2,168.00
CAD
Does not ship to OH, United States
- Model - 15884
- Factory Set Point - No Factory Set Point
- Tag - Stainless Steel ID Tag & Wire Attachment
25+ In Stock
$1,324.00
CAD
Does not ship to OH, United States
25+ In Stock
$1,239.00
CAD
Does not ship to OH, United States
Specifications
Adjustment Type
- Captive Clamp Screws
- Factory Set (Pre-Set)
- Set Point Adjustment
Ambient Temperature Range
- -40° to 71° C (-40° to 160° F)
Applications
- Fire Suppression System
- Freeze Protection
- Heat Tracing
- Inputs for Annunciator Panel
- OEM Equipment
- Process Plants
- Processing Equipment (Pumps, Compressors)
Approvals & Certifications
- ATEX Ex directive (94/9/EC) II 1 G EEx ia IIC T6, Tamb.= -50° to 60° C (-58° to 140° F)
- CE
- GOST-R 51330.0, 51330.1, 51330.10 & 51330.14
- Low Voltage Directive (LVD) 73/23/EC & 93/68/EEC
- PED: 97/23/EC
- UL (C,US) 508
Conduit Connection
- 1/2” NPT Female
Deadband
- psi: 80 to 500 (kPa: 551.6 to 3,447, bar: 5.5 to 34.5)
Electrical Connectors
- 7/8” Diameter Knockout
- 7/8” Hole to 1/2” NPT Female Watertight Conduit Fitting
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 0.5 A Resistive, 0.03 A Inductive at 125 Vdc
- 2 A Resistive, 1 A Inductive at 24-30 Vdc
Enclosure Finish
- Epoxy Powder-Coated
Enclosure, Body Material
- Gasketed Die Cast Aluminum
Environmental Protection
- Intrinsically Safe
- IP66
- NEMA 4X
Indication
- Red Status Light, 115 Vac
Mounting
- Pipe
- Surface
Name Plate, Tag Material
- Stainless Steel & Wire Attachment
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
Overpressure & Static Pressure Limits
- Over Range Pressure - psi: 6,000 (kPa: 41,370, bar: 413.7)
Piston Material
- 303 Stainless Steel
Pressure Type
- Gauge
Process Connection Material
- 303 Stainless Steel
- Brass
Proof Pressure
- psi: 10,000 (kPa: 68,948, bar: 689.5)
Repeatability
- Set Point Repeatability: ± 1.5 % of Adjustable Range
Service
- Oxygen Service Cleaning, Alcohol Cleaning to Remove Residue from the Process Connection
Set Point - Decreasing
- bar: 48.3 to 344.7
- kPa: 4,826 to 34,470
- psi: 700 to 5,000
Set Point - Increasing
- bar: 48.3 to 344.7
- kPa: 4,826 to 34,470
- psi: 700 to 5,000
Shock
- Set Point Repeats after 15 G, 10 millisecond Duration
Storage Temperature
- -54° to 71° C (-65° to 160° F)
Switch Type
- One SPDT Snap-Action Switch
System Pressure
- bar: 413.7
- kPa: 41,368
- psi: 6,000
Vibration
- Set Point Repeats after 2.5 G, 5 to 500 Hz
